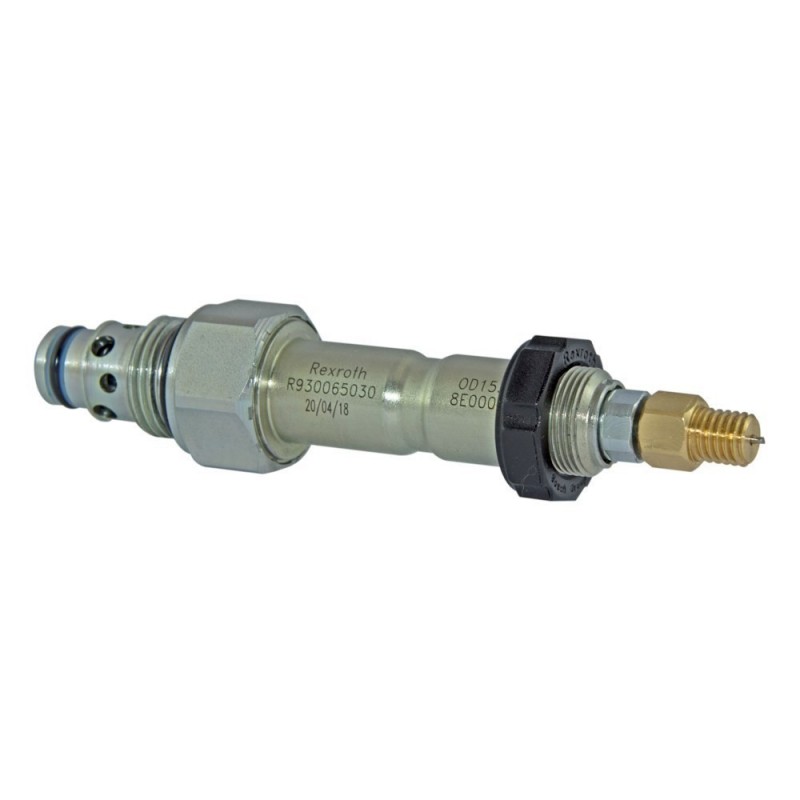

Solenoid valve 2x2 20l/mn NF DB DP VEI 16 8A 2T NC D ET

Name: Solenoid valve 2x2 20l/mn NF DB DP VEI 16 8A 2T NC D ET
SKU: OD153118E000000
Price: 276.84 EUR
Availability: InStock

Ref.1 : OD153118E000000

Ref.2 : R930065030

> Technical sheet

Available

To see our prices and order, you must create an account or log in

Technical characteristic
More info

Rest position	Normally closed
Blocking type	Double blocking
Position	2 Positions
Flow	40 l/mn
Ways	2 Way
Solenoid valve type	On / Off

Solenoid Operated valve 2x2
Cavity : 08A ou 018E
NF : Normally Closed
DB : Double Lock
DP : Double passage
Maxi Flow : 20 l/mn
Maxi Pressure : 210 bar

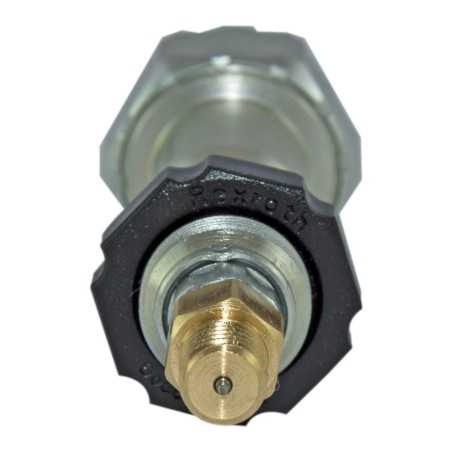

Manual Override : yes cable operated pull style overdrive
Provide an electrical coil type S8

BOSCH REXROTH OIL CONTROL performs a test on each component This bi-directional solenoid valve, from the Bosch Rexroth brand, offered by OCGF, was manufactured using quality materials. This hydraulic solenoid valve is manually operated.
