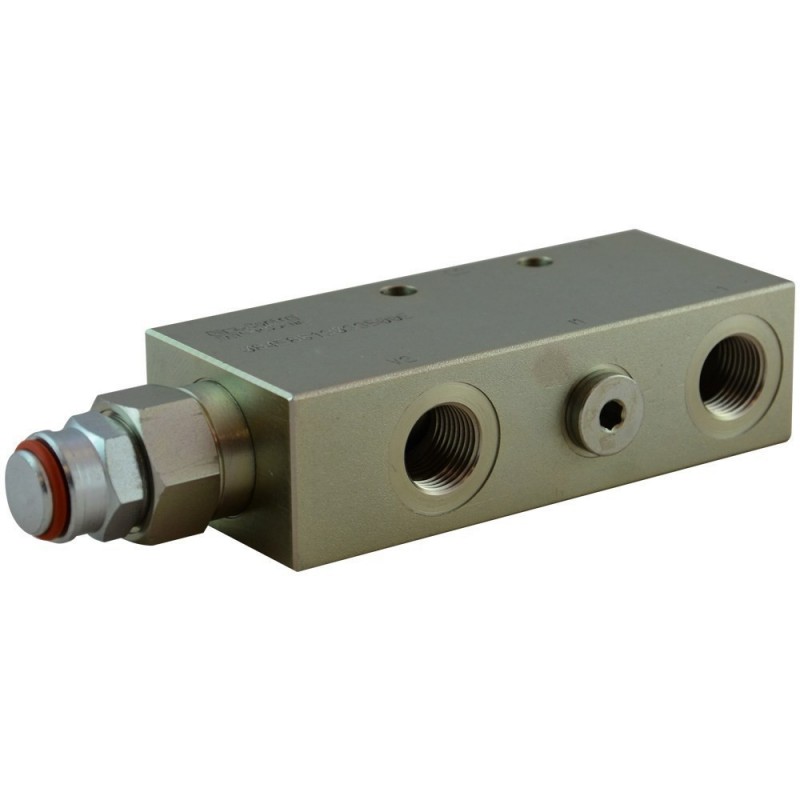

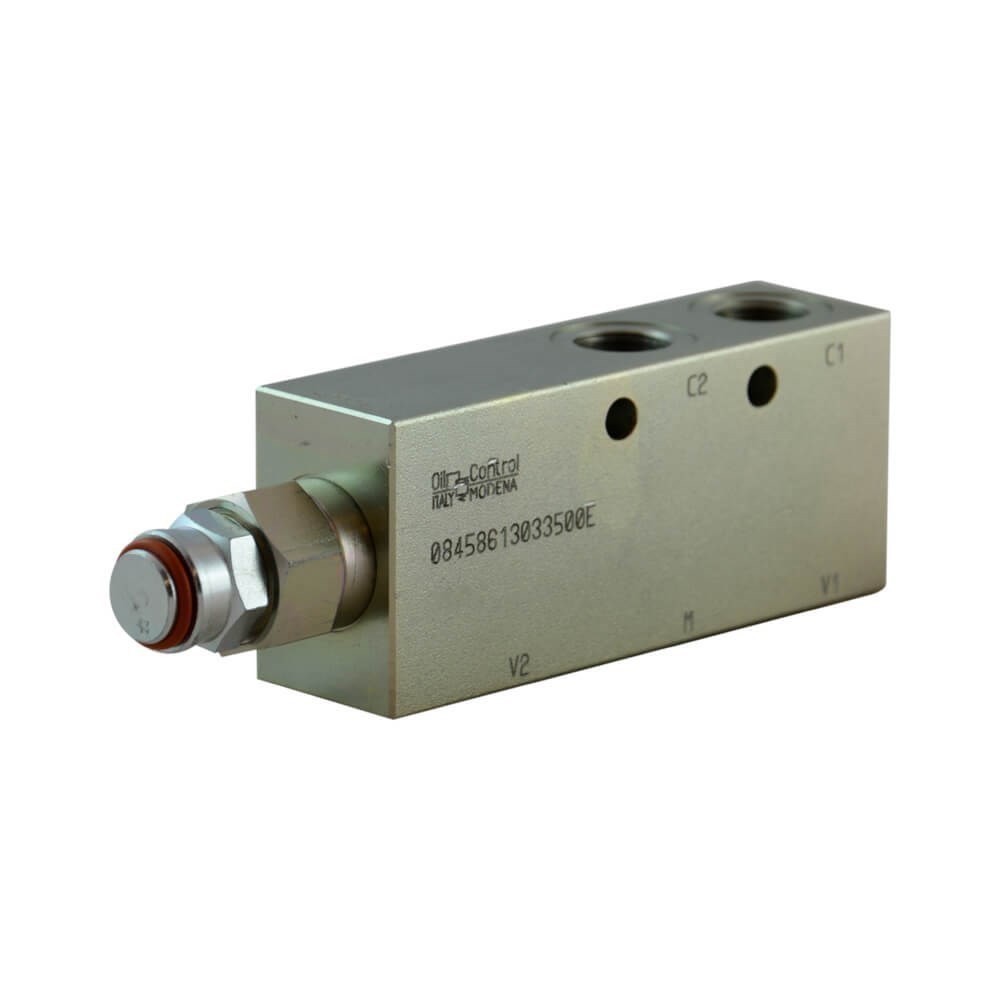

Single counterbalance 3/4 A VBSO SE 33 CCAP PL VUR 34 35C 4:1
Pour voir nos tarifs et commander, vous devez créer un compte ou vous connecter.
| Pressure adjustment | 100 - 350 bar |
|---|---|
| Maximum pressure | 410 bar |
| Compensated valve | Yes |
| Material | Steel |
| Function Type | Single Acting |
| Flow Max | 150 l/mn |
| Weight | 3.1 kg |
| Assembly | In line |
| Thread | Gaz - 3/4" |
| Family | Balancing Valve |
| Range | A-VBSO |
| Pilot ratio | 4:1 |
hydraulic Pilot assisted Compensated Overcentre
Port : 3/4"
Maxi Flow : 150 l/mn
Pilot ratio : 4/1
Maxi Pressure : 350 bar
Adjustment of Pressure : 100 to 350 bar
Factory calibration : 350 bar
Material : Steel
BOSCH REXROTH OIL CONTROL performs a test on each component
