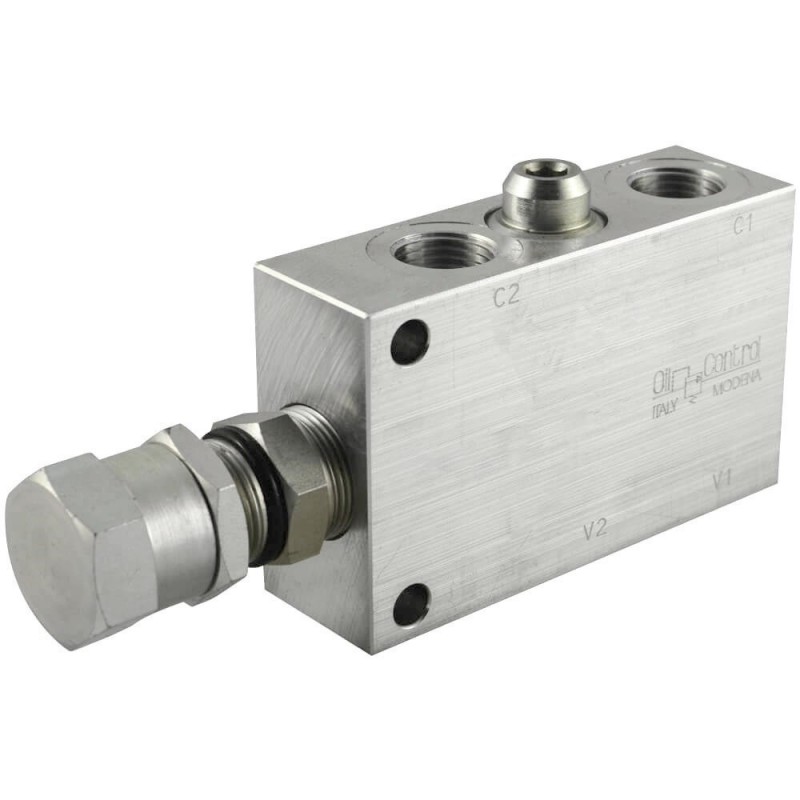

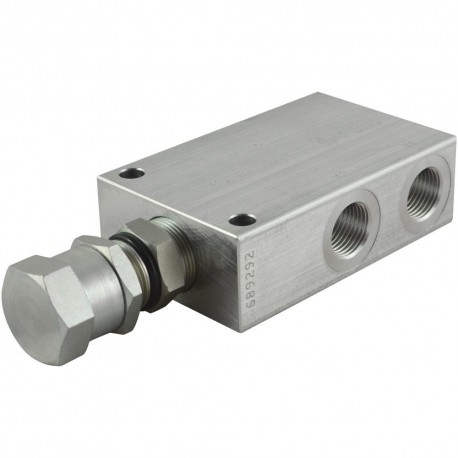

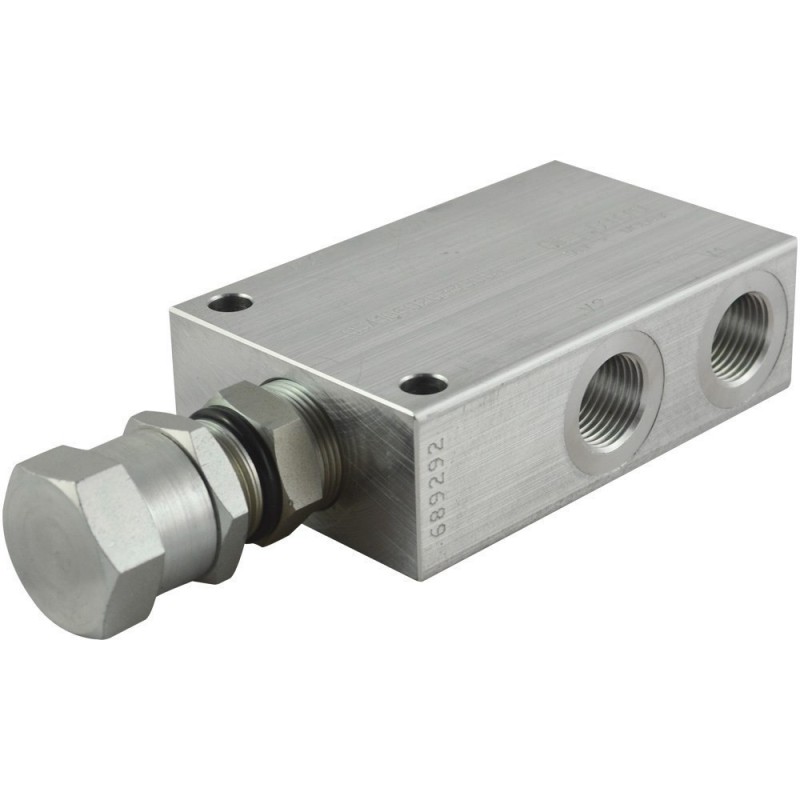

Single counterbalance 1/2 VBSO SE CC 12 35 A

Single counterbalance 1/2 VBSO SE CC 12 35 A

05410602033500A

R930001671

> Technical sheet

Available for order

To see our prices and order, you must create an account or log in

Sign up or Log in
Pressure adjustment100 - 350 bar
Maximum pressure350 bar
Compensated valveYes
MaterialAluminium
Function TypeSingle Acting
Flow Max80 l/mn
Weight1 kg
AssemblyIn line
ThreadGaz - 1/2"
FamilyBalancing Valve
RangeVBSO

Pilot assisted Compensated Overcentre
Port : 1/2"
Maxi Flow : 80 l/mn
Pilot ratio : 8.2/1
Maxi Pressure : 350 bar
Adjustment of Pressure : 100 to 350 bar
Factory calibration : 350 bar
Body : Aluminium

BOSCH REXROTH OIL CONTROL performs a test on each component
