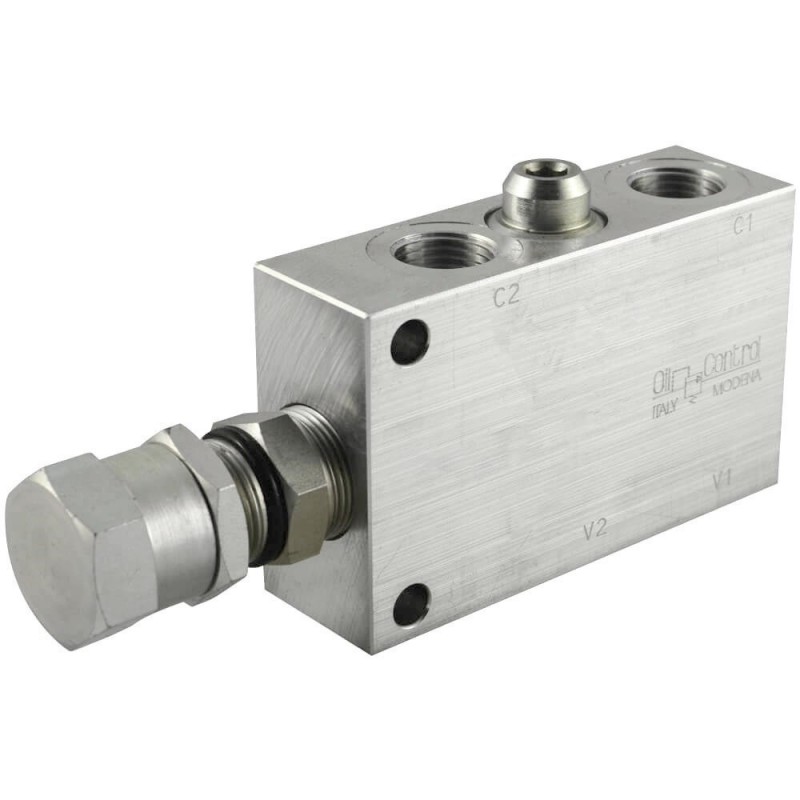

Single counterbalance 1/2 VBSO SE CC 12 20

Name: Single counterbalance 1/2 VBSO SE CC 12 20
SKU: 054106020320000
Price: 311.87 EUR
Availability: InStock

Ref.1 : 054106020320000

Ref.2 : R930001670

> Technical sheet

Available

To see our prices and order, you must create an account or log in

Technical characteristic
More info

Pressure adjustment	60 - bar 210 bar
Maximum pressure	350 bar
Compensated valve	Yes
Material	Aluminium
Function Type	Single Acting
Flow Max	80 l/mn
Weight	1 kg
Assembly	In line
Thread	Gaz - 1/2"
Family	Balancing Valve
Range	VBSO

Pilot assisted Compensated Overcentre
Port : 1/2"
Maxi Flow : 80 l/mn
Pilot ratio : 8.2/1
Maxi Pressure : 350 bar
Adjustment of Pressure : 60 to 210 bar
Factory calibration : 200 bar
Body : Aluminium

BOSCH REXROTH OIL CONTROL performs a test on each component
