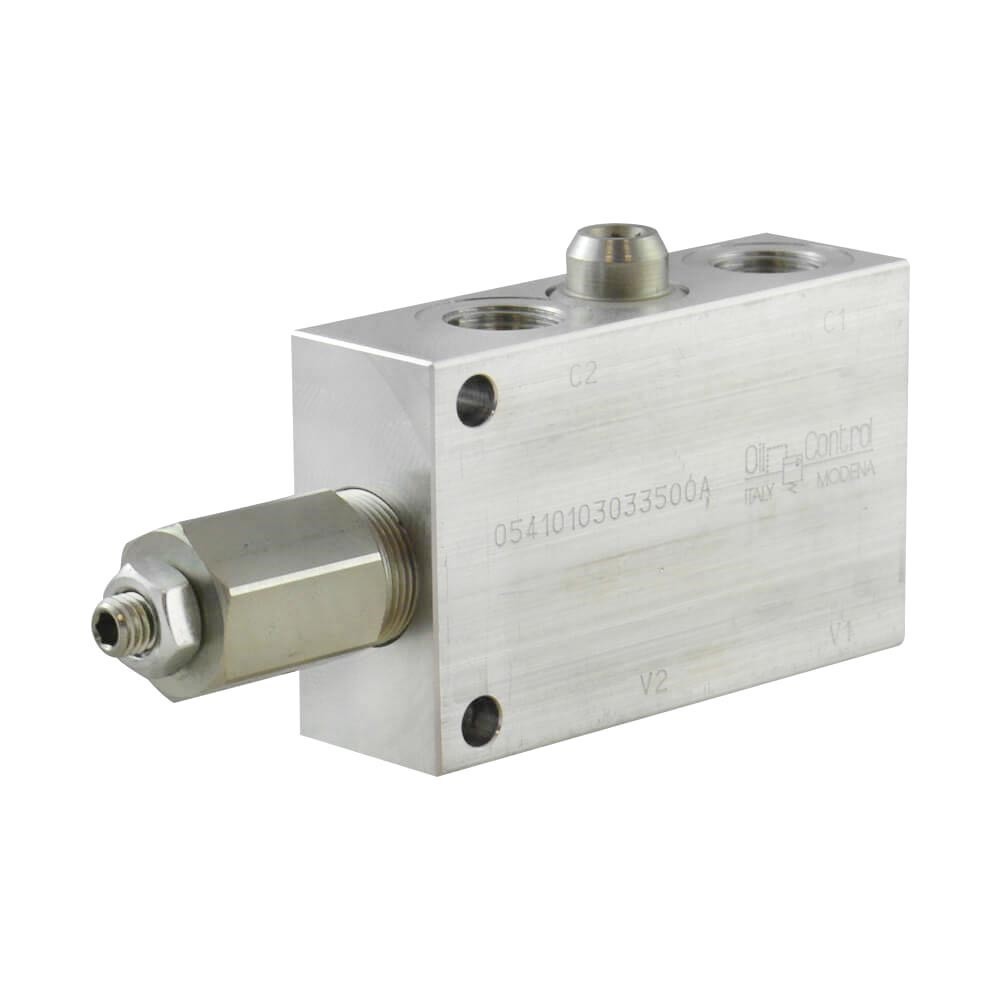

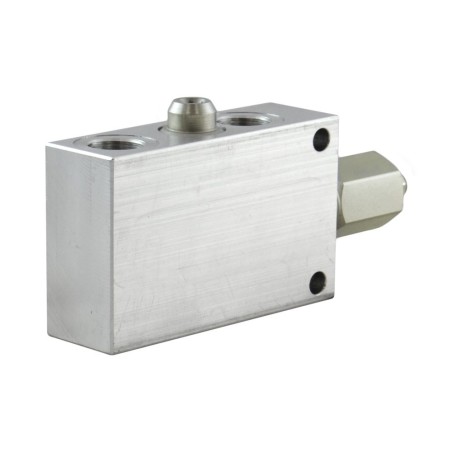

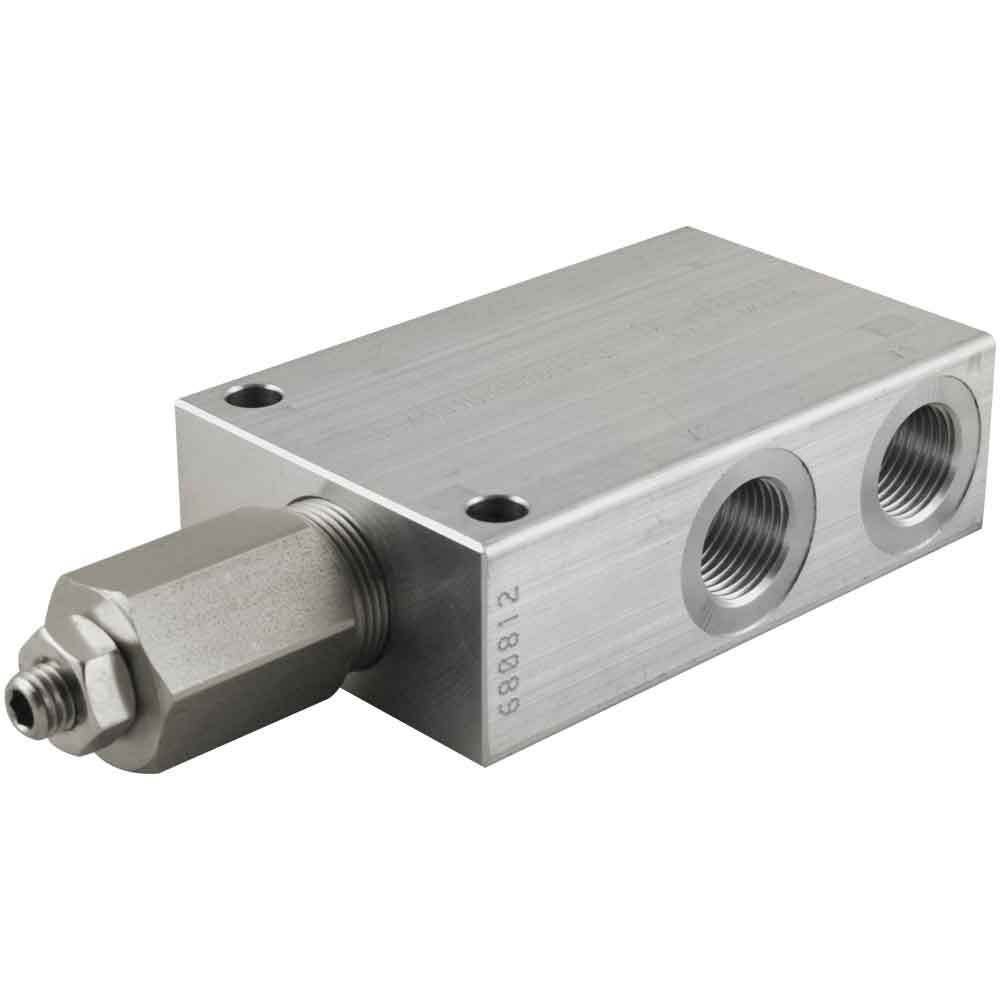

Single counterbalance 1/2" VBSO SE 12 35.A

Name: Single counterbalance 1/2" VBSO SE 12 35.A
SKU: 05410103033500A
Price: 242.57 EUR
Availability: InStock

Ref.1 : 05410103033500A

Ref.2 : R930001655

> Technical sheet

Available

To see our prices and order, you must create an account or log in

Technical characteristic
More info

Compensated valve	No
Material	Aluminium
Function Type	Single Acting
Weight	1 kg
Assembly	In line
Thread	Gaz - 1/2"
Family	Balancing Valve
Range	VBSO

Pilot assisted Overcentre
Port : 1/2"
Maxi Flow : 120 l/mn
Pilot ratio : 8.2/1
Maxi Pressure : 350 bar
Adjustment of Pressure : 100 to 350 bar
Factory calibration : 350 bar
Body : Aluminium

BOSCH REXROTH OIL CONTROL performs a test on each component
