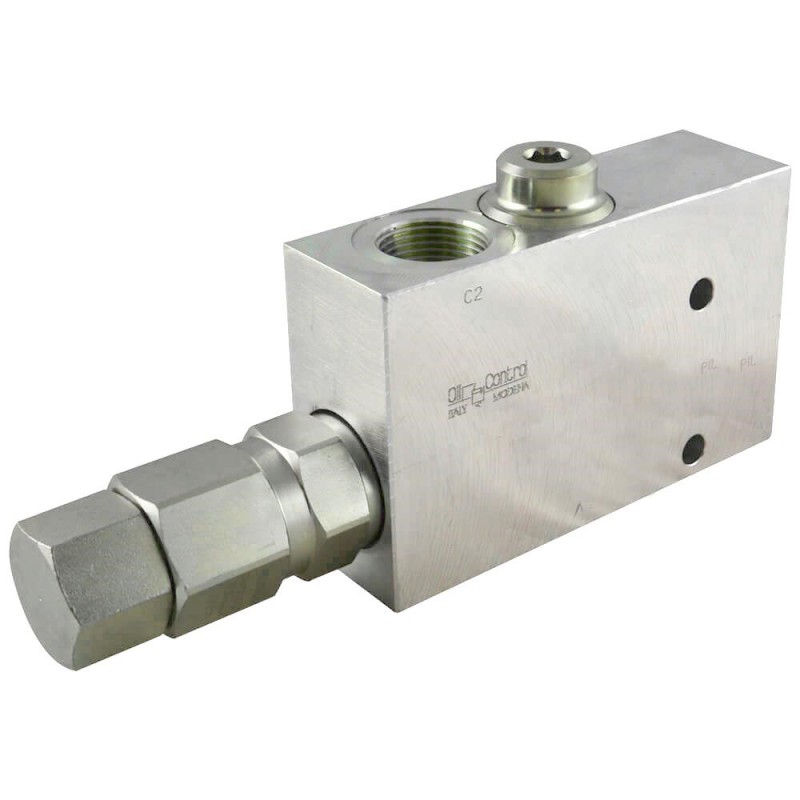

Single counterbalance 1" VBSO SE NA 100 35 B

Name: Single counterbalance 1" VBSO SE NA 100 35 B
SKU: 05416203053500B
Price: 936.67 EUR
Availability: InStock

Ref.1 : 05416203053500B

Ref.2 : R930007415

> Technical sheet

Available

To see our prices and order, you must create an account or log in

Technical characteristic
More info

Pressure adjustment	100 - 350 bar
Maximum pressure	350 bar
Compensated valve	No
Material	Aluminium
Function Type	Single Acting
Weight	3.3 kg
Assembly	In line
Thread	Gaz - 1"
Family	Balancing Valve
Range	VBSO

Balancing valve Single acting
Orifice: 1 "
Max. Flow: 220 l / min
Pilot report: 8/1
Max. Pressure: 350 bar
Setting Pressure: 100 to 350 bar
Factory setting pressure: 350 bar
Material: Aluminum

OIL CONTROL of the BOSH REXROTH OIL CONTROL group performs a test on each component.
