Keyed sleeve 17 teeth - Keyway 3.17 for CP2 / M2
Pour voir nos tarifs et commander, vous devez créer un compte ou vous connecter.

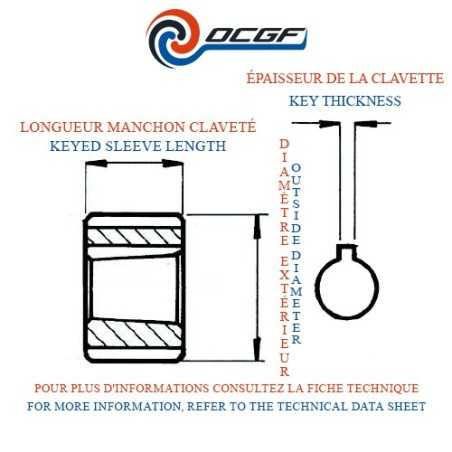

| Type of hydraulic pump | 2 |
|---|---|
| Outside diameter | 22 mm |
| Hydraulic pump unit | Groupe 2.5/2 |
| Length | 31.50 mm |
| External teeth | 17 |
| External spline standard | B 32x28 - DIN 5482 |
| Key thickness | 3.17 mm |

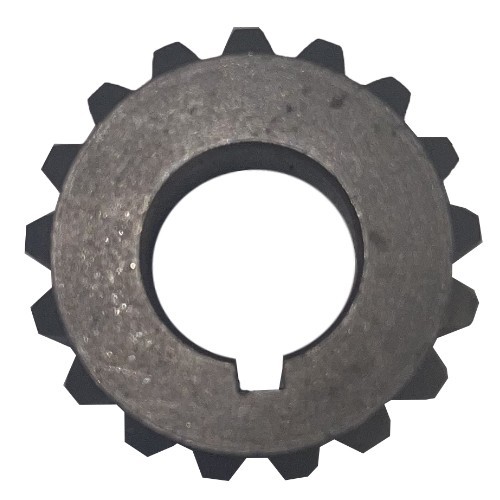

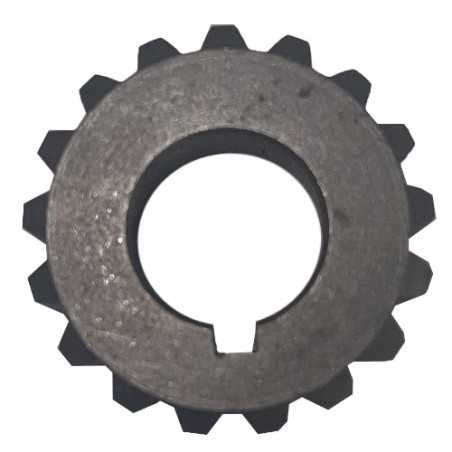

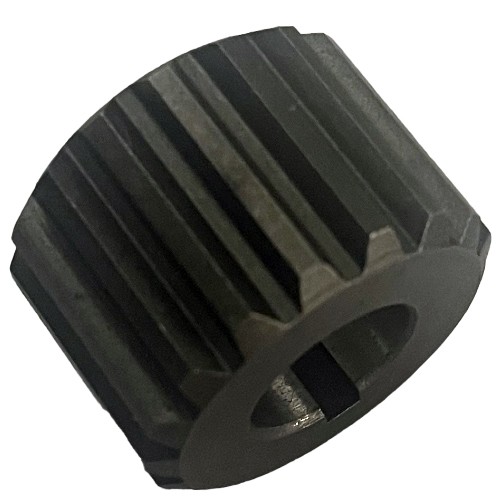

Keyed sleeve coupling 17 teeth keyway 3.17mm for bearing 2 and group hydraulic pump 2
The 17 teeth shaft coupler with keyway 3.17 mm for bearing 2 and group hydraulic pump 2 is built for precision and durability. It provides a secure fit and reduces wear, ensuring efficient torque transmission in hydraulic systems. This coupling is perfect for both demanding and routine applications, helping to optimize system performance. OCGF offers worldwide delivery and is a specialist in hydraulic solutions. If you have questions or need advice, our team of professionals is here to assist you. We are proudly located in France.

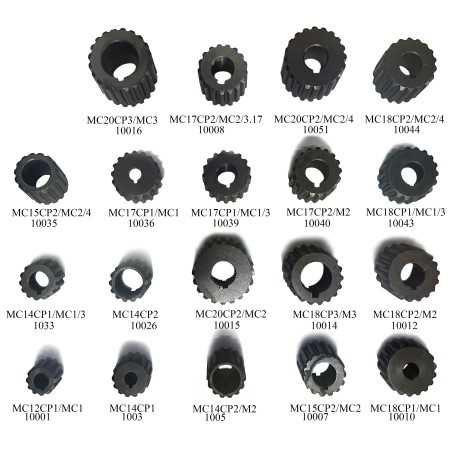

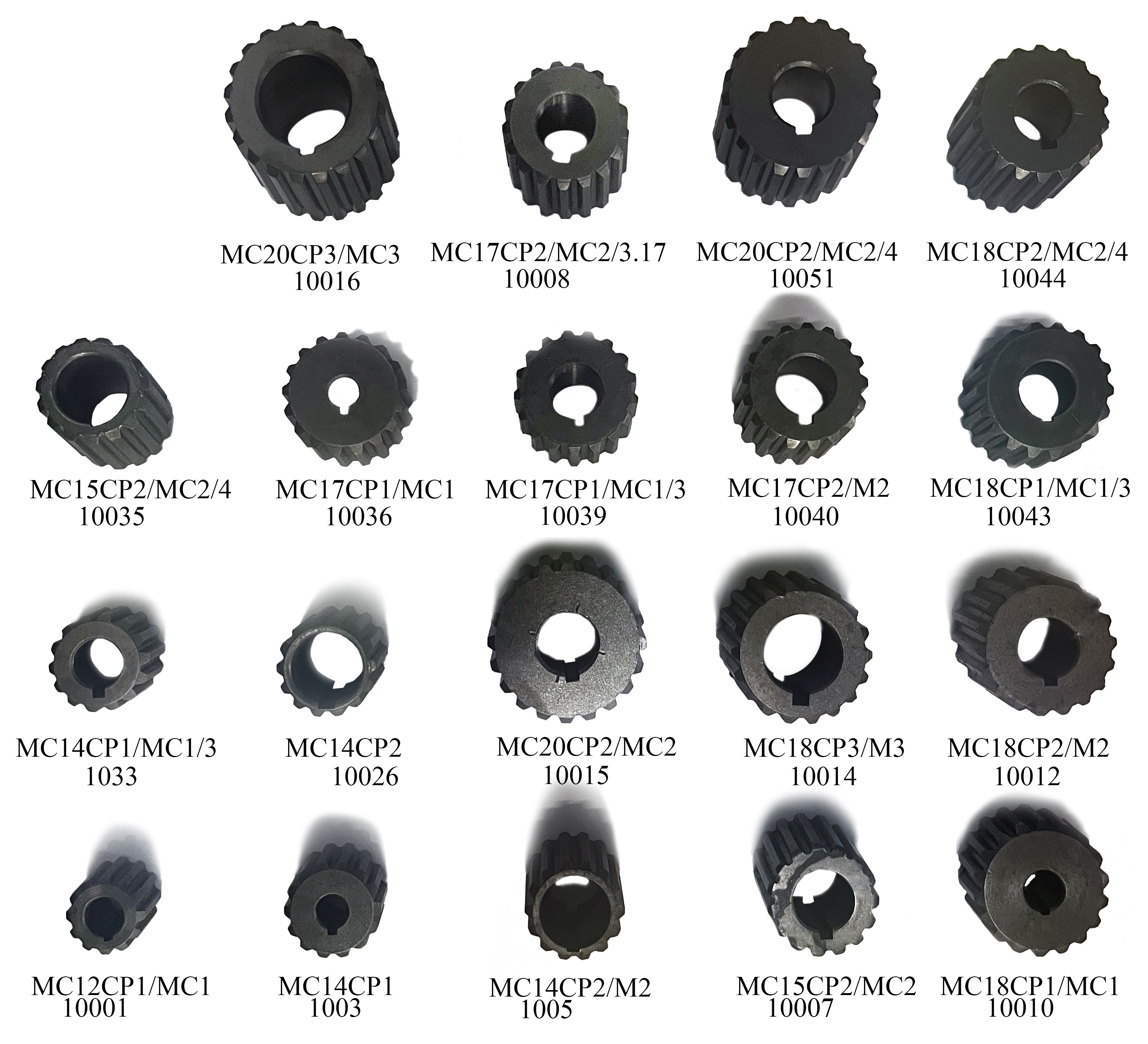

Keyed sleeves
Keyed sleeves are mechanical components used in various applications to ensure a strong connection between two parts, such as shafts and hubs. Made from robust materials like steel, these sleeves feature grooves or keys that engage with corresponding slots on the shaft and hub, ensuring precise alignment and efficient torque transmission. These devices are commonly employed in industrial machinery and equipment to ensure stability and optimal performance of mechanical connections.
