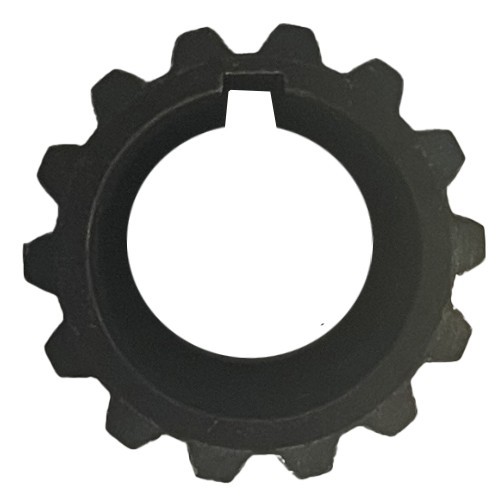

Keyed sleeve 14 teeth - Keyway 3.2 for CP2 / M2
Pour voir nos tarifs et commander, vous devez créer un compte ou vous connecter.

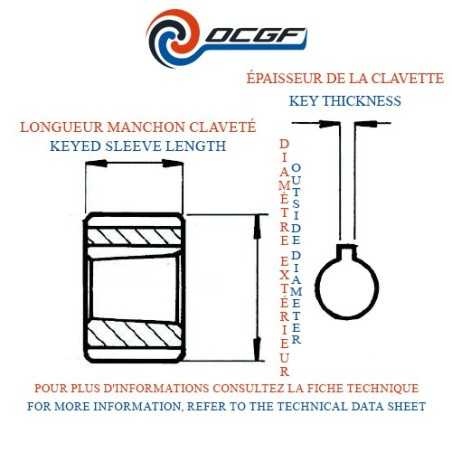

| Type of hydraulic pump | 2 |
|---|---|
| Outside diameter | 22 mm |
| Hydraulic pump unit | Group 2 |
| Length | 24.50 mm |
| External teeth | 14 |
| External spline standard | B 25x22 - DIN 5482 |
| Key thickness | 3.17 mm |
| Family | Splined Sleeve |

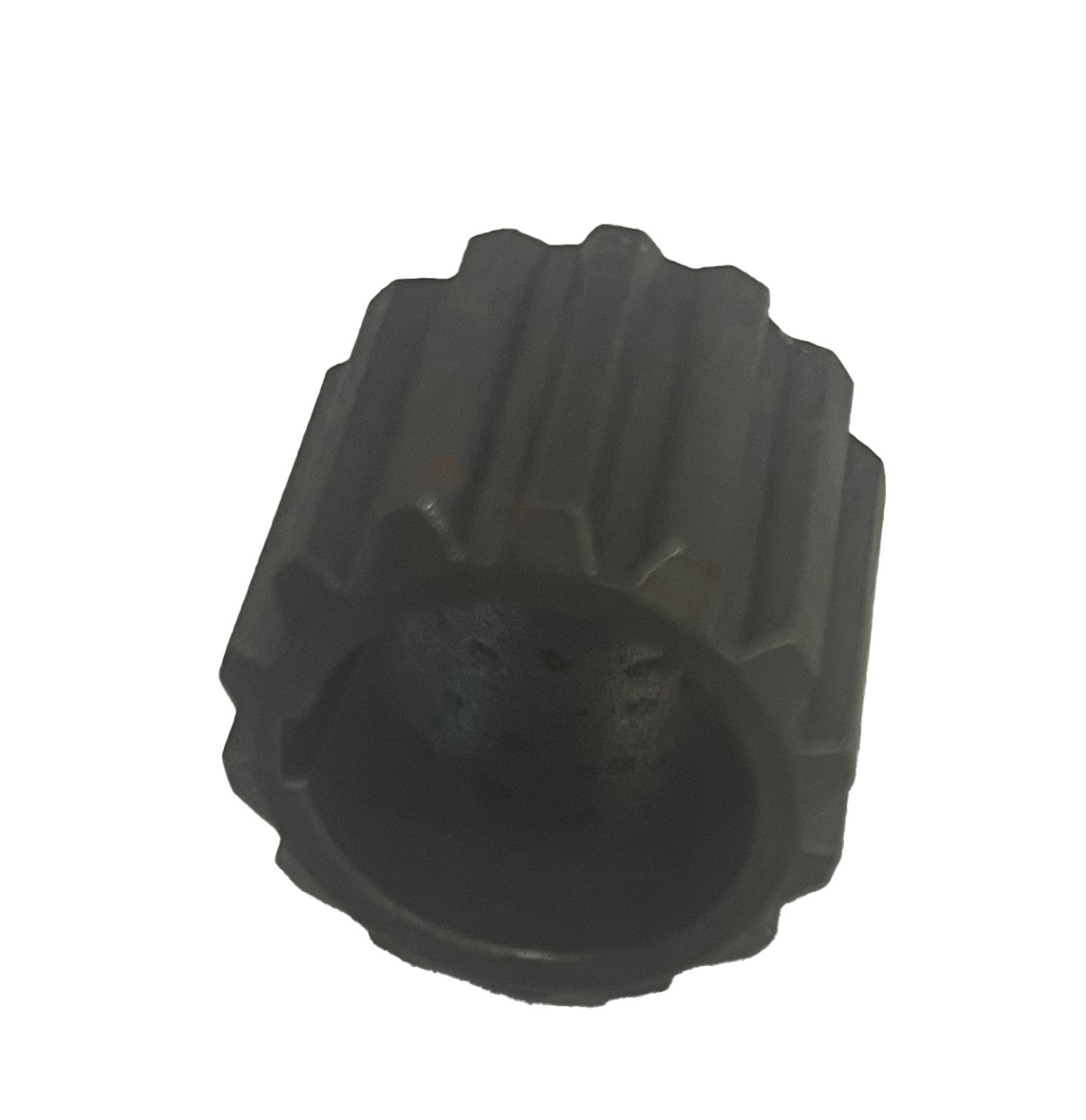

Keyed sleeve coupling 14 teeth keyway 3.2mm for bearing 2 and group hydraulic pump 2
The 14 teeth shaft coupler with keyway 3.2 mm for bearing 2 and group hydraulic pump 2 is crafted for superior performance and reliability in hydraulic systems. Its precision fit minimizes wear, extending your system’s operational lifespan. This coupling is ideal for both light and heavy-duty applications. OCGF provides global delivery and is a leader in hydraulic expertise. If you have any questions, feel free to reach out to our team of professionals. We are proudly based in France.

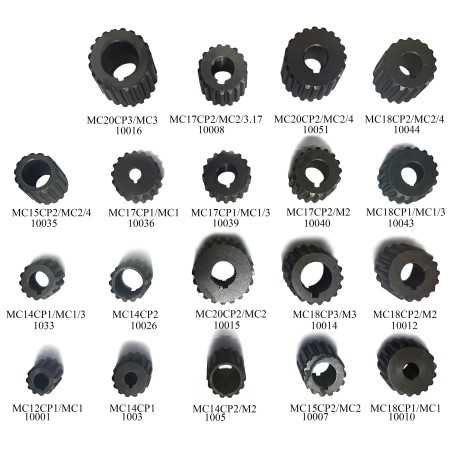

Keyed sleeves
Keyed sleeves are mechanical components used in various applications to ensure a strong connection between two parts, such as shafts and hubs. Made from robust materials like steel, these sleeves feature grooves or keys that engage with corresponding slots on the shaft and hub, ensuring precise alignment and efficient torque transmission. These devices are commonly employed in industrial machinery and equipment to ensure stability and optimal performance of mechanical connections.
