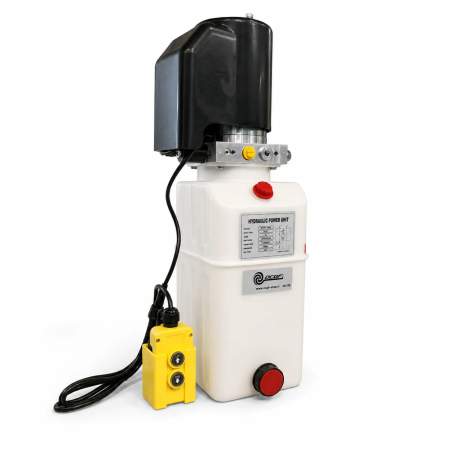

Hydraulic Tipper Pump 12V – 1.6 kW, 150 bar, 9L Tank, with Push-Button Control Box and Mounting Bracket

12 V Hydraulic Tipper Pump 1.6 kW 150 bar with 9 L Tank

When a tipper body no longer lifts properly, when the old power unit starts struggling, or when the hydraulic system needs a clean replacement, the priority is simple: fit a reliable unit that is easy to install and suited to the actual application. This 12 V hydraulic tipper pump with a 1.6 kW motor, 150 bar pressure rating and 9 L reservoir is designed for exactly that type of use. It is suitable for battery-powered hydraulic systems installed on tipping trailers, utility vehicles, agricultural trailers, small dump bodies, lifting platforms or compact mobile equipment. The 9 L tank provides a practical oil capacity for many tipping applications while keeping the complete power unit compact enough for vehicle-mounted installations.

A Complete Hydraulic Tipper Power Unit for Mobile Use

This hydraulic tipper power unit is supplied with a push-button control box and support bracket. That makes installation easier, especially when replacing an existing unit or fitting a new tipping system. The wired control box allows the operator to control the lifting and lowering function directly from the pendant. The support bracket helps keep the control box properly positioned on the trailer or vehicle, reducing loose cables and making the system easier to use in daily operation. With its 12 V power supply, this unit is well suited to mobile hydraulic applications powered by a battery. Before ordering, it is important to check that the pressure, oil volume, cylinder type and hydraulic connections match your equipment.

Typical Applications

This 12 V hydraulic pump can be used on a wide range of compact lifting and tipping systems, including: hydraulic tipper bodies; tipping trailers; small dump trailers; agricultural trailers; utility vehicle hydraulic systems; tipping platforms; replacement of an existing 12 V hydraulic power unit; mobile hydraulic systems using a compatible cylinder setup. The goal is to provide a simple, efficient and practical hydraulic solution for lifting and tipping operations without overcomplicating the installation.

Main Technical Features

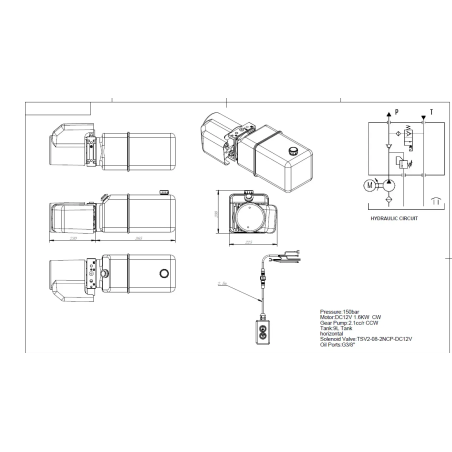

Product type: hydraulic tipper pump / hydraulic power unit Voltage: 12 V Motor power: 1.6 kW Maximum pressure: 150 bar Tank capacity: 9 L Control: wired push-button control box Included accessory: support bracket Main use: tipper body, trailer, platform or mobile hydraulic equipment

Why Order This Hydraulic Tipper Pump from OCGF?

OCGF supplies hydraulic components for professionals and private users who need dependable parts for repair, maintenance or new installations. This 12 V hydraulic tipper pump is a practical choice if you need a complete unit with the essential elements already included: hydraulic power unit, oil reservoir, push-button control and support bracket. It helps save time during installation and reduces the risk of choosing separate components that may not work correctly together. Before placing your order, check the voltage, pressure requirement, oil tank capacity, cylinder volume, connection type and available mounting space. If you are unsure, OCGF can help you confirm whether this hydraulic tipper pump is suitable for your application.

FAQ – 12 V Hydraulic Tipper Pump 150 bar

Is this hydraulic power unit suitable for a tipping trailer?

Yes, this 12 V hydraulic tipper pump can be suitable for tipping trailers, provided that the pressure, oil volume, cylinder type and hydraulic circuit are compatible with your equipment.

What is the pressure rating of this hydraulic pump?

This unit is rated at 150 bar. This pressure is commonly used for many compact tipper, trailer and small lifting applications.

Is the 9 L tank capacity enough?

The 9 L tank is suitable for many compact tipper and trailer systems. However, the required oil volume depends on the cylinder size and stroke, so it should be checked before ordering.

Is the push-button control box included?

Yes, this version is supplied with a wired push-button control box for operating the hydraulic power unit.

Is the support bracket included?

Yes, the support bracket is included. It helps fix or store the control box more cleanly on the equipment.

Can this hydraulic pump be used on a 24 V system?

No, this model is designed for 12 V systems. For a 24 V vehicle or installation, you need a 24 V hydraulic power unit.

Can OCGF help me check compatibility?

Yes. If you are unsure about the correct pump, tank capacity, pressure or hydraulic connection, you can contact OCGF with details of your current unit, cylinder or application. This helps avoid ordering the wrong hydraulic power unit.
