Hydraulic pressure relief valve 50l/mn VSDN 08A 10 (175-350 bar)
Pour voir nos tarifs et commander, vous devez créer un compte ou vous connecter.
| Pressure adjustment | 175 - 350 bar |
|---|---|
| Flow | 50 l/mn |
| Cavity | CA 08A 2N |
| Assembly | Cartridge |
| Adjustment type | Screw adjustment |
| Operation type | Direct |

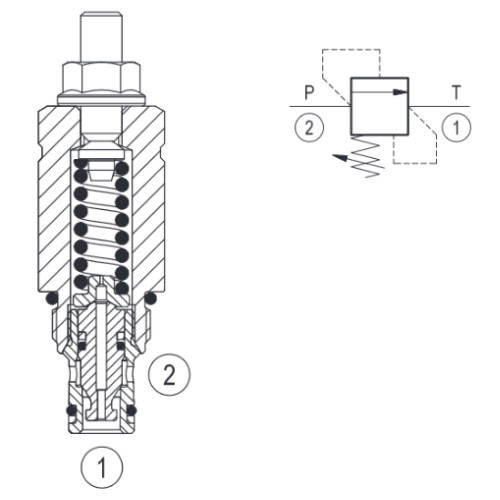

Direct acting relief valve
This hydraulic pressure relief valve offered by OCGF have the function of limiting the pressure and providing protection to the pump in a hydraulic circuit. The operation type of this pressure relief valve is Direct.This pressure relief valve with reference 041522035635000 has a pressure of 175 - 350 bar. It is adjusted By screws. The assembly is Cartridge . It has a maximum flow capacity of 50 l/mn. For technical advice, do not hesitate to contact us using the contact details at the bottom of this page.
