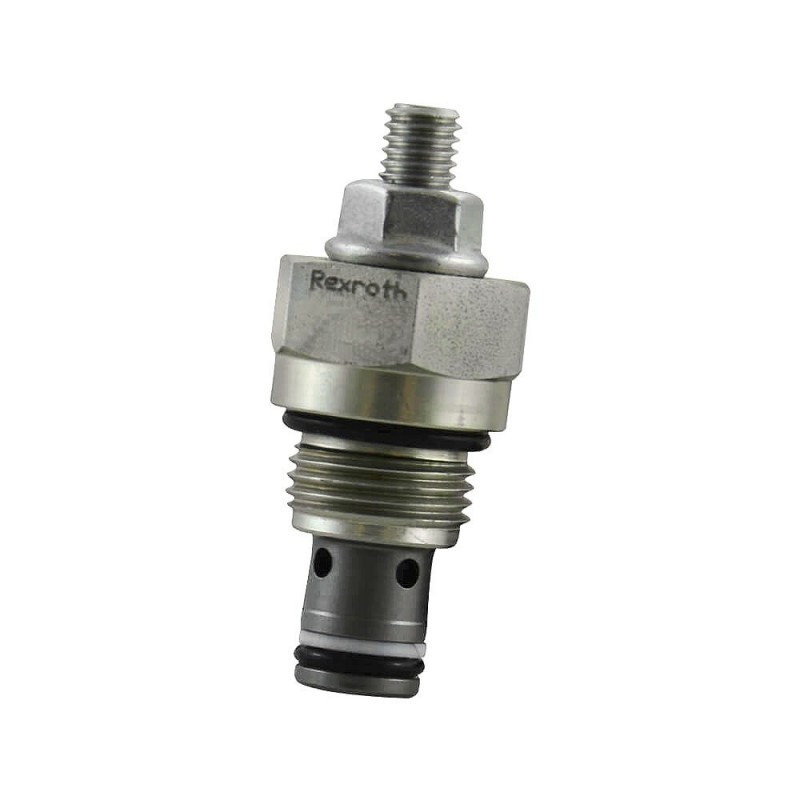

Hydraulic pressure relief valve 3l/mn VSAN (105-210 bar)
Pour voir nos tarifs et commander, vous devez créer un compte ou vous connecter.
| Pressure adjustment | 105 - 210 bar |
|---|---|
| Flow | 3 l/mn |
| Cavity | CA 08A 2N |
| Assembly | Cartridge |
| Adjustment type | Screw adjustment |
| Operation type | Direct |
| Family | Pressure Limiter |
Direct acting relief valve
This hydraulic pressure relief valve offered by OCGF have the function of limiting the pressure and providing protection to the pump in a hydraulic circuit. The operation type of this pressure relief valve is Direct.This pressure relief valve with reference 041148035620000 has a pressure of 105 - 210 bar. It is adjusted By screws. The assembly is Cartridge . It has a maximum flow capacity of 03 l/mn. For technical advice, do not hesitate to contact us using the contact details at the bottom of this page.
