Hydraulic pressure relief valve 30l/mn VSC (30-100 bar)

Hydraulic pressure relief valve 30l/mn VSC (30-100 bar)

051301030310000

> Technical sheet

Available

To see our prices and order, you must create an account or log in

Sign up or Log in
Adjustment Pressure Range30 - 100 bar
MaterialAlluminium
Flow max30 l/mn
AssemblyIn line
ConnectionGaz - 1/2"
Adjustment typeBy screws
Operation typeDirect

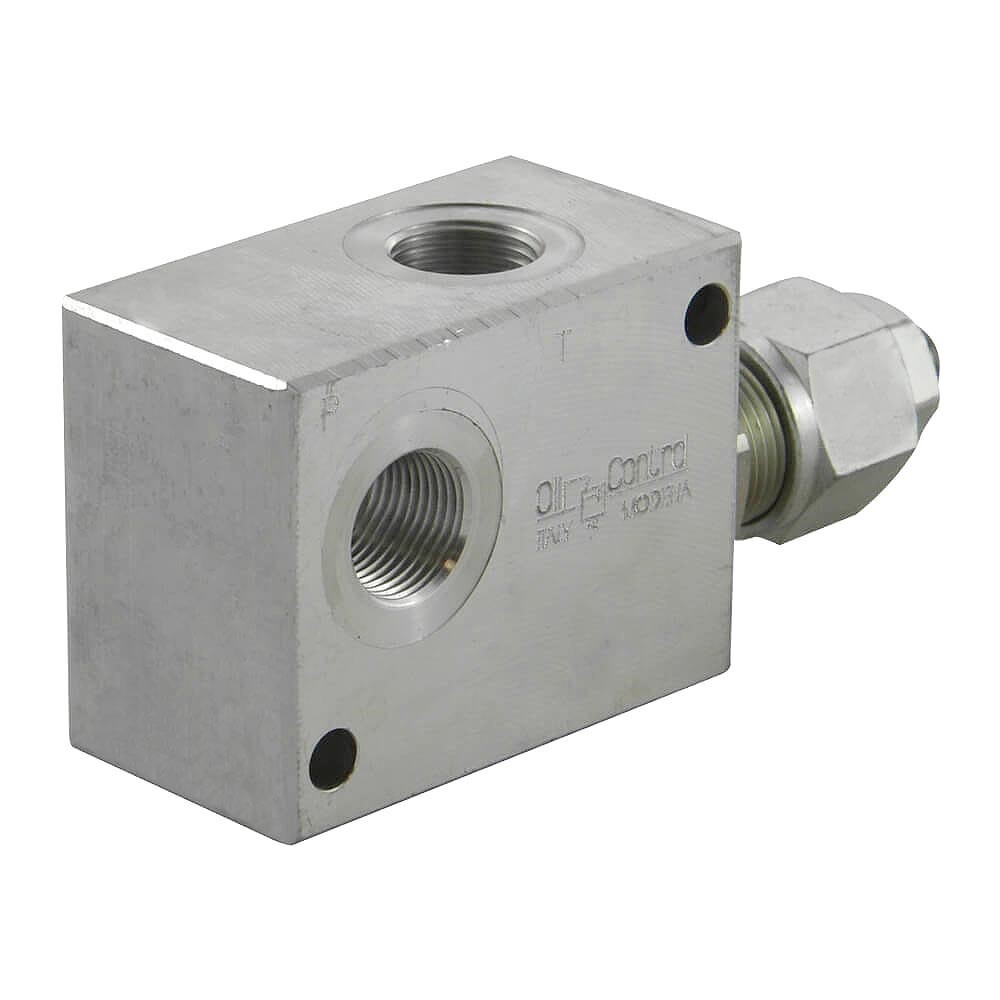

This hydraulic pressure relief valve offered by OCGF have the function of limiting the pressure and providing protection to the pump in a hydraulic circuit. The operation type of this pressure relief valve is Direct.This pressure relief valve with reference 051301030310000 has a pressure of 30 - 100 bar. It is adjusted By screws. The assembly is In line. It has a maximum flow capacity of 30 l/mn. For technical advice, do not hesitate to contact us using the contact details at the bottom of this page.
