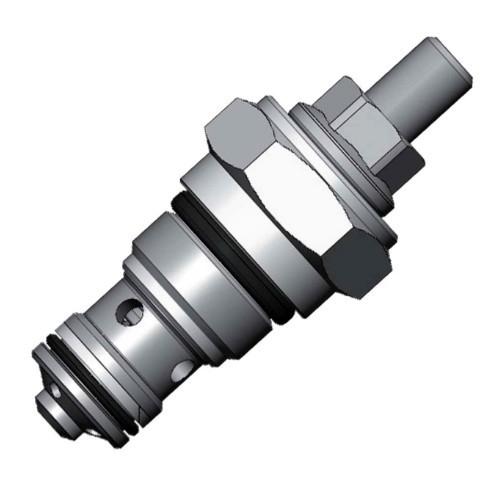

Hydraulic pressure relief valve 20l/mn VSBN-08S (35-100bar) - B
Pour voir nos tarifs et commander, vous devez créer un compte ou vous connecter.
| Pressure adjustment | 35 - 100 bar |
|---|---|
| Flow | 20l/mn |
| Cavity | Special 019E |
| Assembly | Cartridge |
| Adjustment type | Screw adjustment |
| Operation type | Direct |

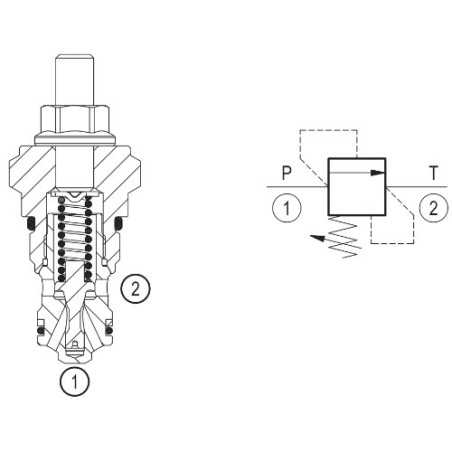

Direct acting relief valve
This hydraulic pressure relief valve offered by OCGF have the function of limiting the pressure and providing protection to the pump in a hydraulic circuit. The operation type of this pressure relief valve is Direct.This pressure relief valve with reference 04116903561000A has a pressure of 35 - 100 bar. It is adjusted By screws. The assembly is Cartridge . It has a maximum flow capacity of 20 l/mn. For technical advice, do not hesitate to contact us using the contact details at the bottom of this page.
