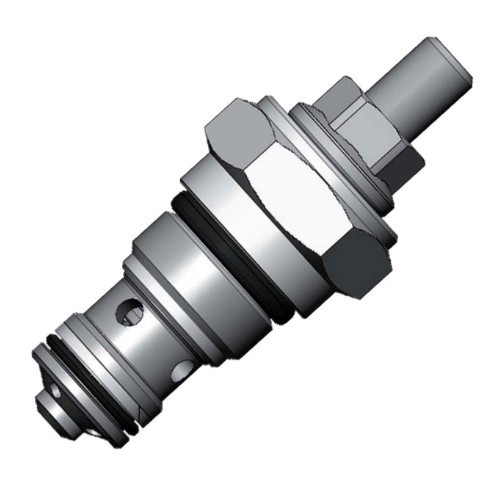

Hydraulic pressure relief valve 20l/mn VSBN-08S (175-350 bar) - D
Pour voir nos tarifs et commander, vous devez créer un compte ou vous connecter.
| Pressure adjustment | 175 - 350 bar |
|---|---|
| Flow | 20l/mn |
| Cavity | Special 019E |
| Assembly | Cartridge |
| Adjustment type | Screw adjustment |
| Operation type | Direct |

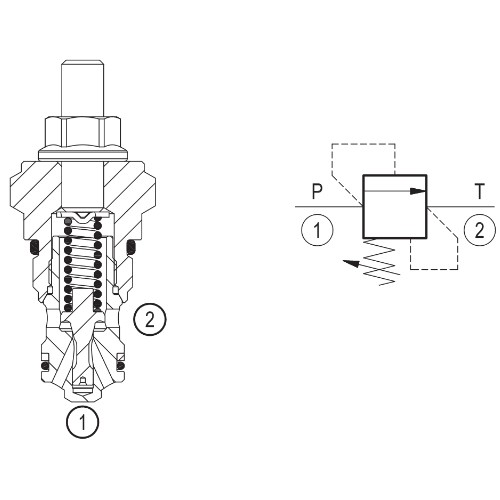

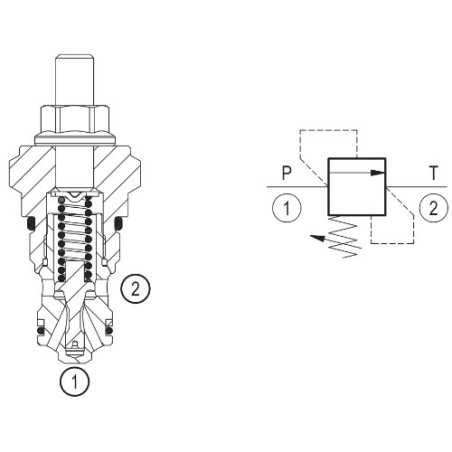

Direct acting relief valve
This hydraulic pressure relief valve offered by OCGF have the function of limiting the pressure and providing protection to the pump in a hydraulic circuit. The operation type of this pressure relief valve is Direct.This pressure relief valve with reference 04116903563510A has a pressure of 175 - 350 bar. It is adjusted By screws. The assembly is Cartridge . It has a maximum flow capacity of 20 l/mn. For technical advice, do not hesitate to contact us using the contact details at the bottom of this page.
