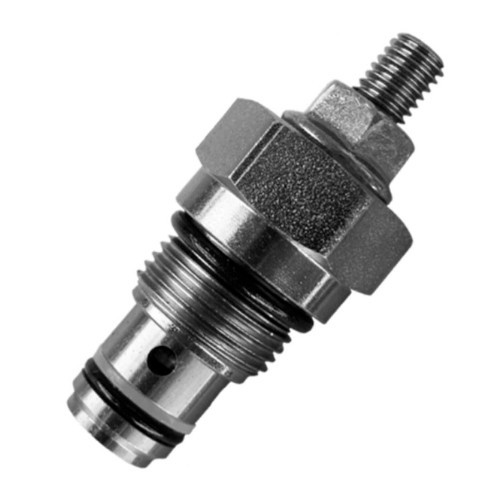

Hydraulic pressure relief valve 20l/mn VSBN 08F 35 (175-350 bar)
Pour voir nos tarifs et commander, vous devez créer un compte ou vous connecter.
| Pressure adjustment | 175 - 350 bar |
|---|---|
| Flow | 20l/mn |
| Cavity | CA 08A 2N |
| Assembly | Cartridge |
| Adjustment type | Wheel adjustment |
| Operation type | Direct |

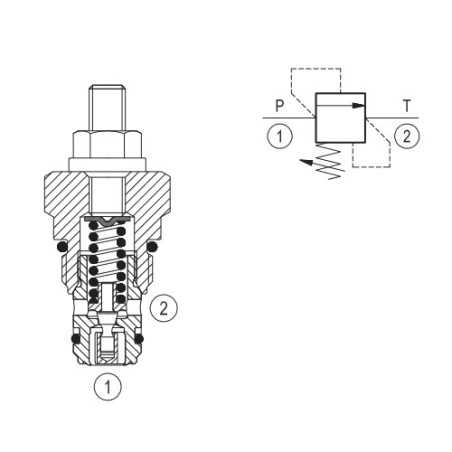

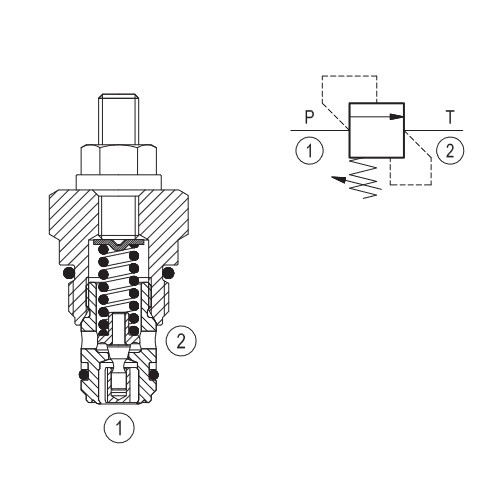

Direct acting relief valve
This hydraulic pressure relief valve offered by OCGF have the function of limiting the pressure and providing protection to the pump in a hydraulic circuit. The operation type of this pressure relief valve is Direct.This pressure relief valve with reference 041149032035000 has a pressure of 175 - 350 bar. It is adjusted By handwheel. The assembly is Cartridge . It has a maximum flow capacity of 20 l/mn. For technical advice, do not hesitate to contact us using the contact details at the bottom of this page.
