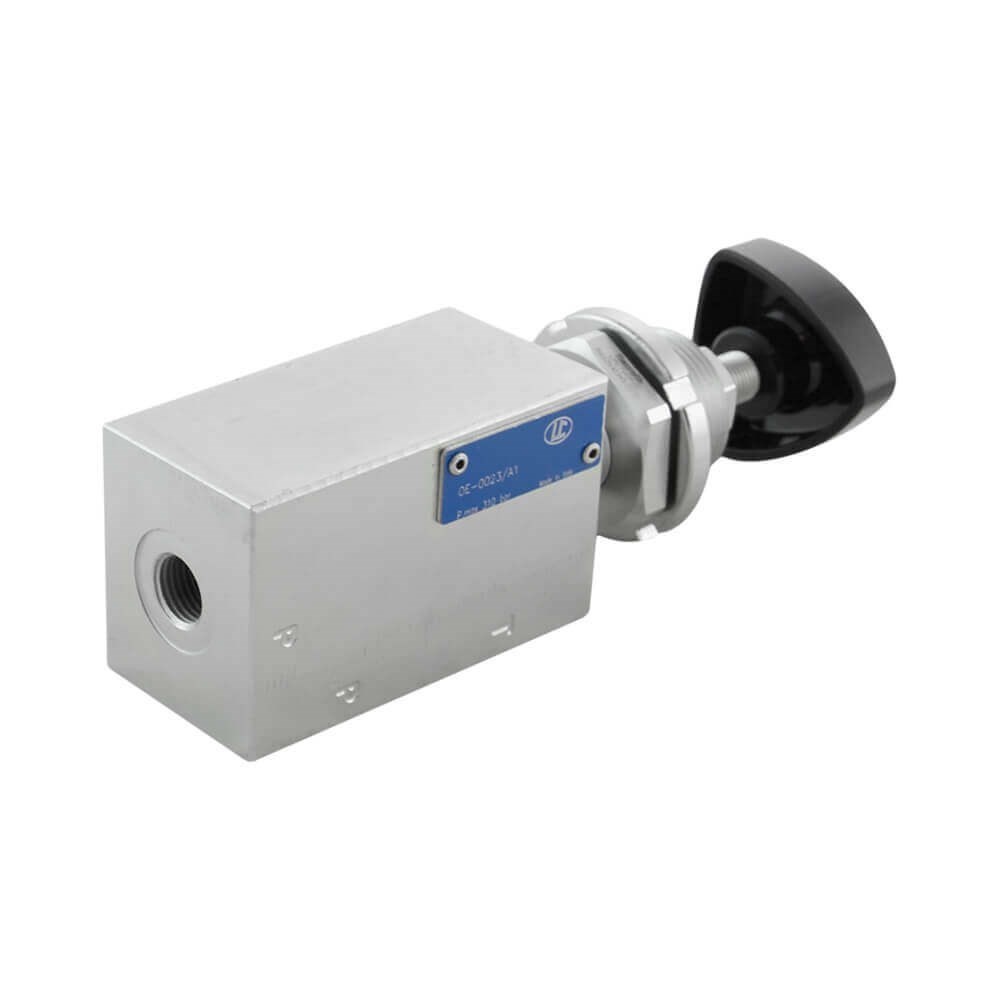

Hydraulic pressure relief valve 20l/mn CP7/0V (0-75 bar)
Pour voir nos tarifs et commander, vous devez créer un compte ou vous connecter.
| Pressure adjustment | 0 - 75 bar |
|---|---|
| Flow | 20l/mn |
| Material | Steel |
| Cavity | Bloc |
| Assembly | In line |
| Thread | Gaz - 1/4" |
| Adjustment type | Wheel adjustment |
| Operation type | Direct |
Direct acting relief valve
This hydraulic pressure relief valve offered by OCGF have the function of limiting the pressure and providing protection to the pump in a hydraulic circuit. The operation type of this pressure relief valve is Direct.This pressure relief valve with reference CP70V has a pressure of 0 - 75 bar. It is adjusted By handwheel. The assembly is In line. It has a maximum flow capacity of 20 l/mn. For technical advice, do not hesitate to contact us using the contact details at the bottom of this page.
CP7.0V_-_CP7.0V_-_OIL_CONTROL
CP7.0V_-_CP7.0V_-_OIL_CONTROL.pdf
