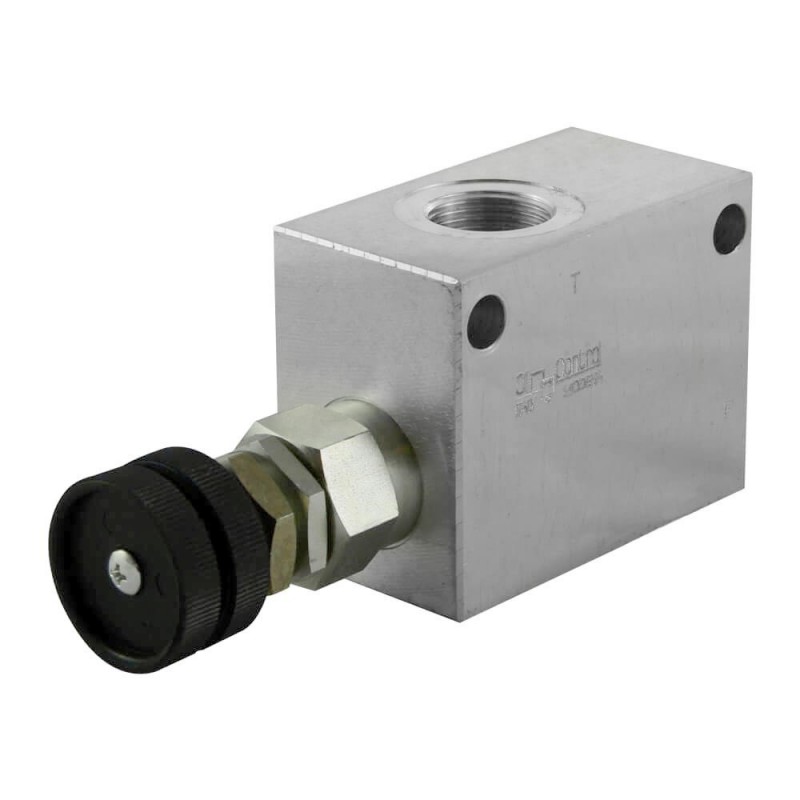

Hydraulic pressure relief valve 150l/mn (10-210 bar)

Hydraulic pressure relief valve 150l/mn (10-210 bar)

051105040420000

R930001228

> Technical sheet

Available

To see our prices and order, you must create an account or log in

Sign up or Log in
Pressure adjustment10 - 210 bar
MaterialAlluminium
Flow Max150 l/mn
AssemblyIn line
ConnectionGaz - 3/4"
Adjustment typeBy handwheel
Operation typePiloted operated

Direct operated relief valve

This hydraulic pressure relief valve offered by OCGF have the function of limiting the pressure and providing protection to the pump in a hydraulic circuit. The operation type of this pressure relief valve is Piloted operated.This pressure relief valve with reference 051105040420000 has a pressure of 10 - 210 bar. It is adjusted By handwheel. The assembly is In line. It has a maximum flow capacity of 150 l/mn. For technical advice, do not hesitate to contact us using the contact details at the bottom of this page.
