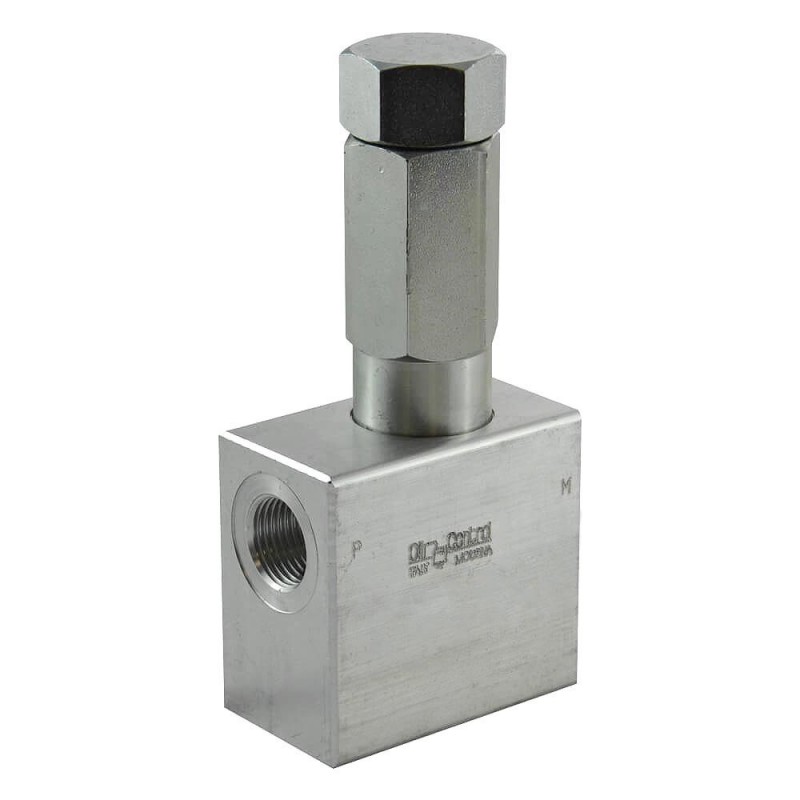

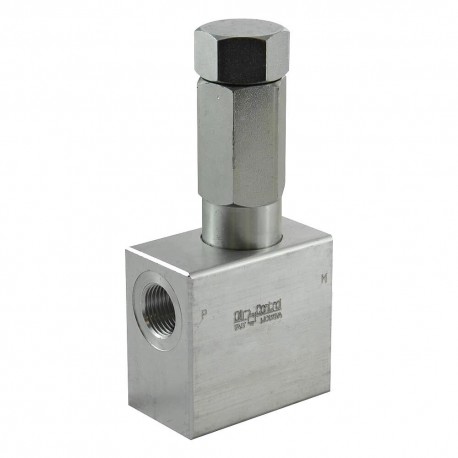

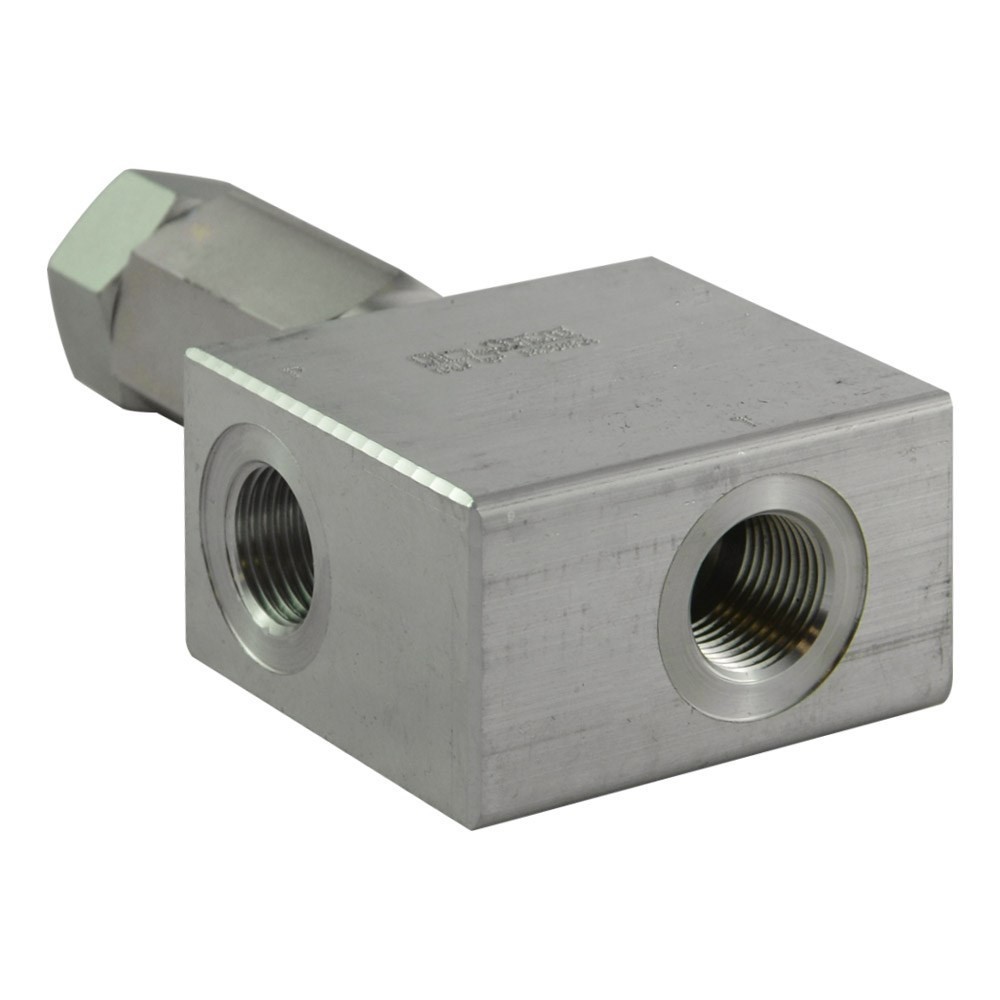

Hydraulic pressure relief valve 150l/mn (05-50 bar)

Hydraulic pressure relief valve 150l/mn (05-50 bar)

05120203030500A

R930007003

> Technical sheet

Available for order

To see our prices and order, you must create an account or log in

Sign up or Log in
Pressure adjustment05 - 50 bar
MaterialAlluminium
Flow Max150 l/mn
AssemblyIn line
ConnectionGaz - 1/2"
Adjustment typeBy screws
Operation typeDirect

Direct acting relief valve

This hydraulic pressure relief valve offered by OCGF have the function of limiting the pressure and providing protection to the pump in a hydraulic circuit. The operation type of this pressure relief valve is Direct.This pressure relief valve with reference 051202030305000 has a pressure of 05 - 50 bar. It is adjusted By screws. The assembly is In line. It has a maximum flow capacity of 150 l/mn. For technical advice, do not hesitate to contact us using the contact details at the bottom of this page.

Former references :

  • 051202030305000
