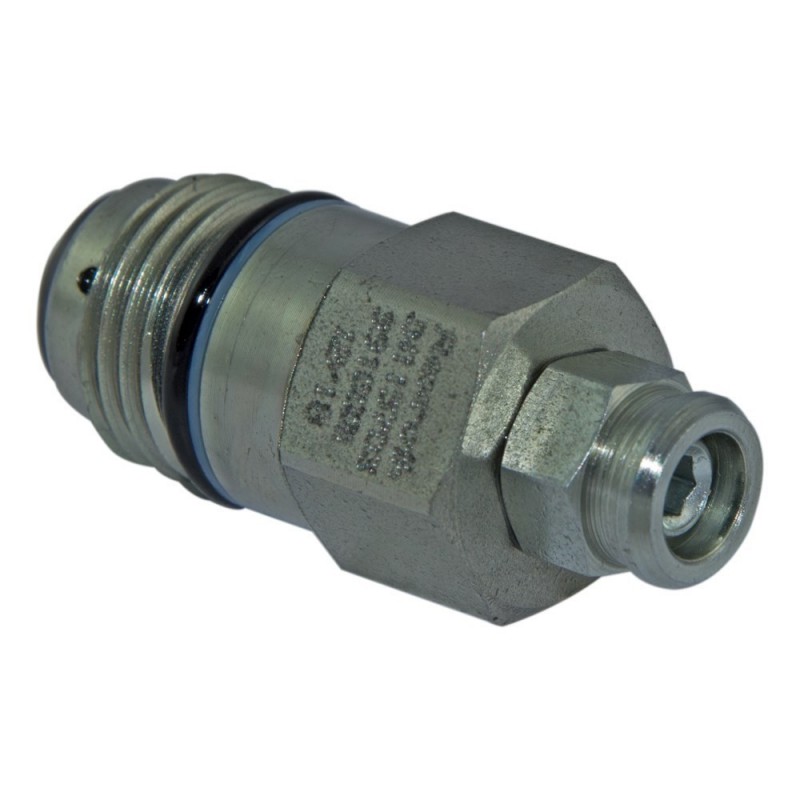

Hydraulic pressure relief valve 1.5l/mn (25-100 bar)
Pour voir nos tarifs et commander, vous devez créer un compte ou vous connecter.
| Pressure adjustment | 25 - 100 bar |
|---|---|
| Flow | 1.5 l/mn |
| Cavity | Special 348 |
| Assembly | Cartridge |
| Adjustment type | Screw adjustment |
| Operation type | Direct |
| Family | Pressure Limiter |
Direct acting relief valve
This hydraulic pressure relief valve offered by OCGF have the function of limiting the pressure and providing protection to the pump in a hydraulic circuit. The operation type of this pressure relief valve is Direct.This pressure relief valve with reference 04115703991000A has a pressure of 25 - 100 bar. It is adjusted By screws. The assembly is Cartridge . It has a maximum flow capacity of 1.5 l/mn. For technical advice, do not hesitate to contact us using the contact details at the bottom of this page.
