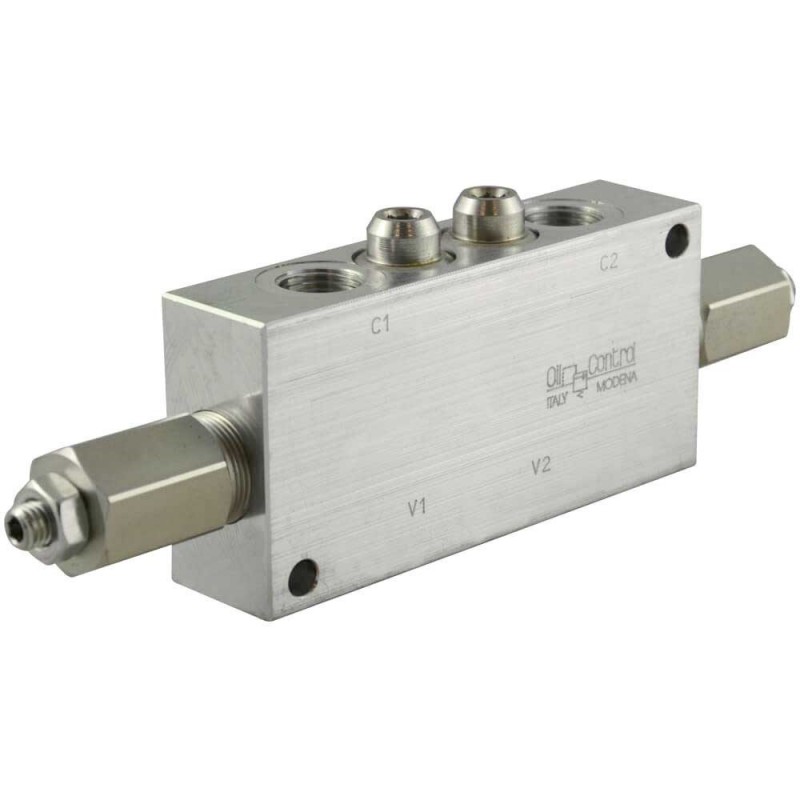

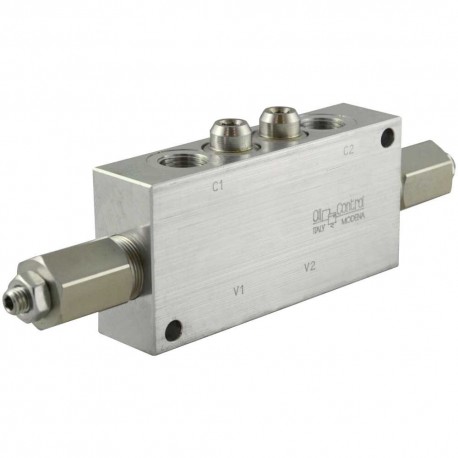

Dual counterbalance 1/2 VBSO DE 12 35.A

Name: Dual counterbalance 1/2 VBSO DE 12 35.A
SKU: 05420103033500A
Price: 335.35 EUR
Availability: InStock

Ref.1 : 05420103033500A

Ref.2 : R930001761

> Technical sheet

Available

To see our prices and order, you must create an account or log in

Technical characteristic
More info

Pressure adjustment	120 - 350 bar
Maximum pressure	210 bar
Compensated valve	No
Material	Aluminium
Function Type	Double Acting
Flow Max	140 l/mn
Weight	1.4 kg
Assembly	In line
Thread	Gaz - 1/2"
Family	Balancing Valve
Range	VBSO

Hydraulic Dual Pilot assisted Overcentre
Port : 1/2"
Maxi Flow : 80 l/mn
Pilot ratio : 8.2/1
Maxi Pressure : 350 bar
Adjustment of Pressure : 100 to 350 bar
Factory calibration : 350 bar
Body : Aluminium

BOSCH REXROTH OIL CONTROL performs a test on each component
