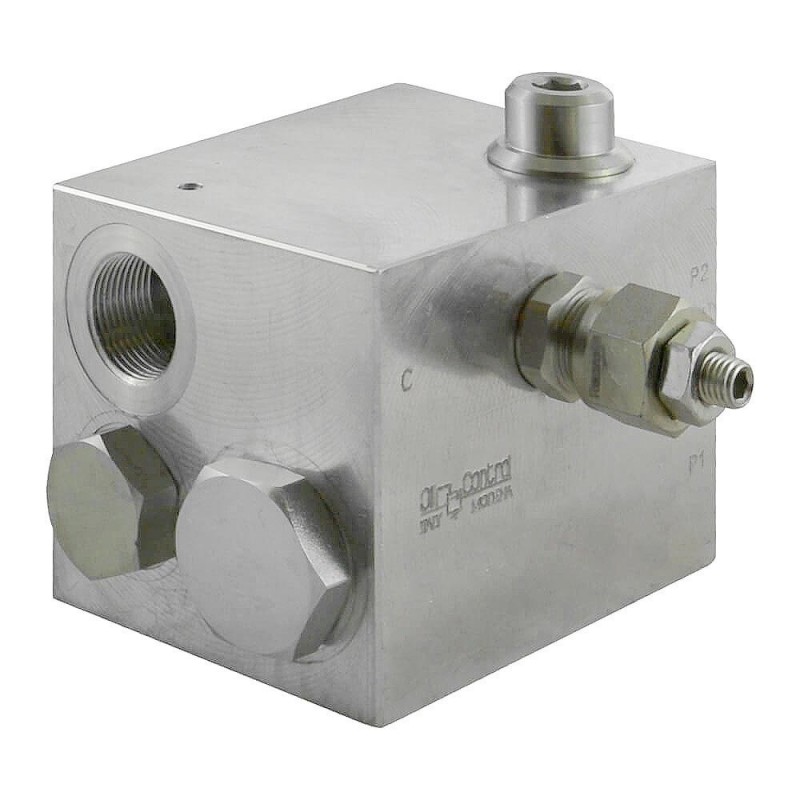

Block BP HP VEP VSP2 34 35
Pour voir nos tarifs et commander, vous devez créer un compte ou vous connecter.
| Pressure adjustment | 100 - 350 bar |
|---|---|
| Flow | 30 l/mn |
| Material | Aluminium |
| Cavity | Bloc |
| Assembly | In line |
| Thread | Gaz - 3/4" |
| Adjustment type | Screw adjustment |
| Operation type | Direct |
Block LP HP with port size 3/4"
Low pressure
Maxi flow pump low pressure : 30 l/mn
Maxi pressure pump low pressure : 100 bar
Standard setting : 50 bar
High pressure
Maxi flow pump high pressure : 120 l/mn
Maxi pressure pump high pressure : 350 bar
There are two possibilities:
- Adjustment to 100 - 350 bar and standard setting 300 bar ;
- Adjustment to 50 - 210 bar and standard setting 200 bar.
Bosch Rexroth Oil Control performs a test on each part.
