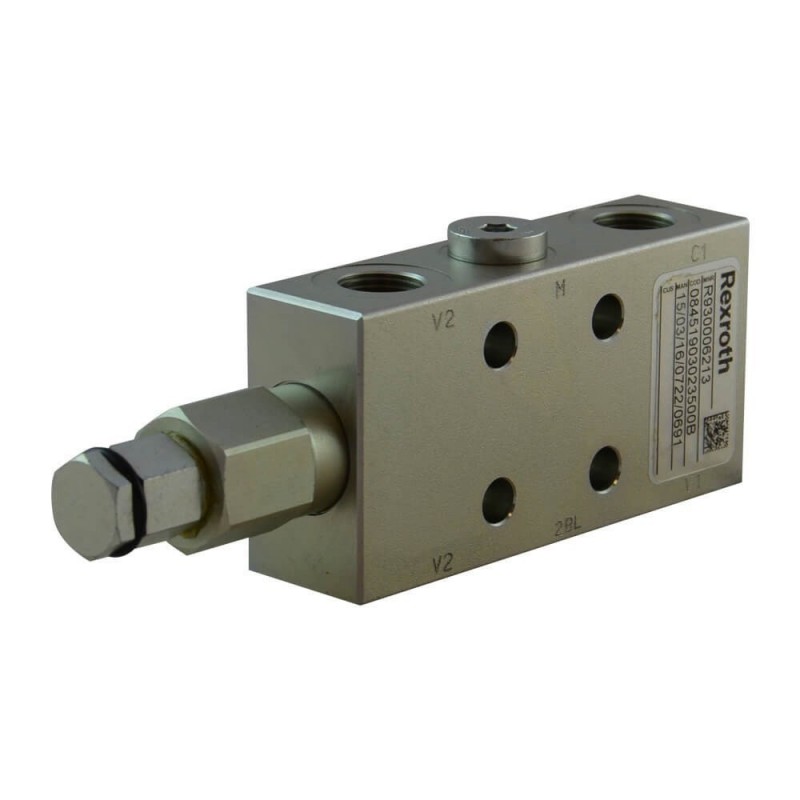

Balancing SE 1/2 A VBSO SE 30 CC FC1 PL 12 35 B

Name: Balancing SE 1/2 A VBSO SE 30 CC FC1 PL 12 35 B
SKU: 08451903033500B
Price: 388.16 EUR
Availability: InStock

Ref.1 : 08451903033500B

> Technical sheet

Available

To see our prices and order, you must create an account or log in

Technical characteristic
More info

Compensated valve	Yes
Material	Steel
Function Type	Single Acting
Weight	1.9 kg
Assembly	Flanged connection
Thread	Gaz - 1/2"
Family	Balancing Valve
Range	A-VBSO

Max. operating pressure 410 bar (5945 psi)
Max. flow 60 l/min. (16 gpm)
Manifold material Zinc plated steel
Flange seal kit 1) E00000000000056 (R930060579)
Fluid Mineral oil (HL, HLP) according
DIN 51524
Fluid temperature range -30°C to 100 (-22 to 212°F)
Viscosity range 5 to 800 mm2/s (cSt)
Recommended degree of fluid contamination
Class 19/17/14 according to ISO 4406
MTTFd 150 years see data sheet 18350-51
Other technical data see data sheet 18350-50
