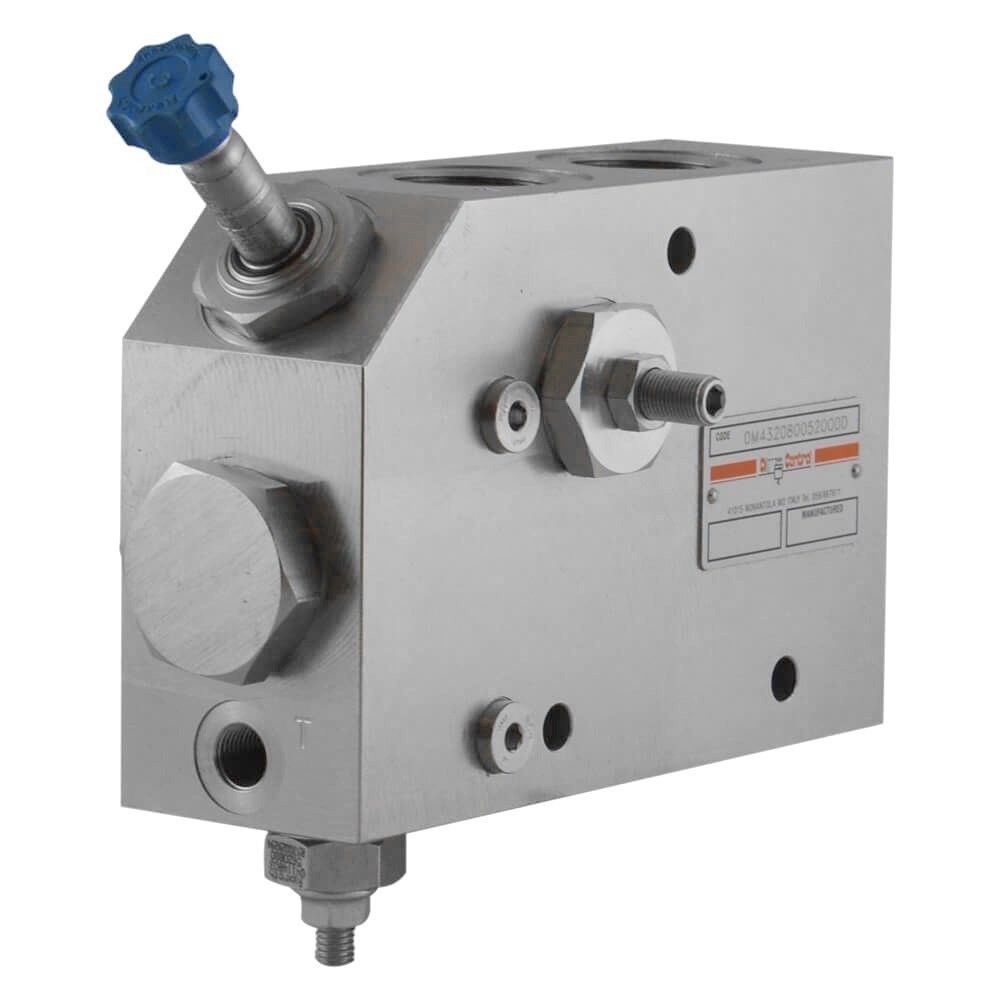

A VRFC 3C VEI VS PT 100 20 B

Hammer valve for pump
Port size : 1" maxi
flow inlet: 300 l/mn
Maxi regulated flow priority : 220 l/mn
Standard setting 210 bar

BOSCH REXROTH OIL CONTROL performs a test on each component.


The A-VRFC3C-VEI-VS series flow control valves are 3-way valves, featuring one inlet port P and two outlet ports A and B.
Outlet A is the priority port, pressure compensated, and equipped with a pressure relief valve, which can be activated on demand through a solenoid cartridge.
Outlet B serves as a by-pass, carrying all the excess flow not required by the priority circuit.

Both outlet flows (A and B) can be used to power different machine functions. These valves provide a simple and efficient solution to supply hydraulic tools (such as hydraulic hammers) using the existing hydraulic system, with no need to modify the main directional control valve.

They allow simultaneous operation, independent of their respective working pressures, of both the hydraulic actuator powered by the priority outlet A and the standard machine functions (traction, slewing, cylinder movements, etc.) powered through the by-pass outlet B via the main directional valve.
