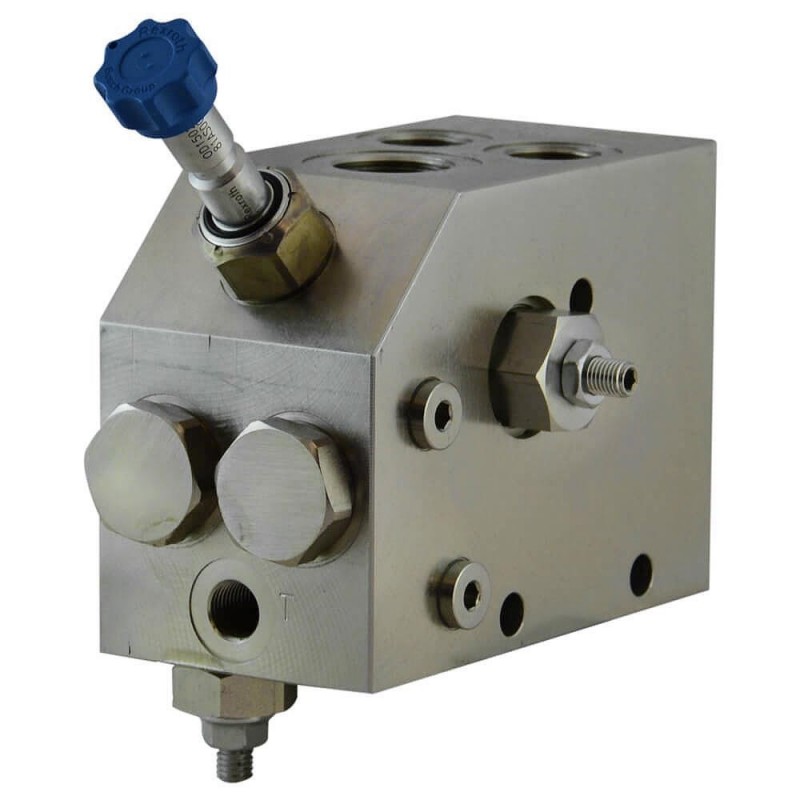

A VRFC 3C VEI VS 2E 12 20 C
A VRFC 3C VEI VS 2E 12 20 C

A VRFC 3C VEI VS 2E 12 20 C

Ref.1 :  0M431280032000D Ref.2 :  R930067642

Pour voir nos tarifs et commander, vous devez créer un compte ou vous connecter.

S’inscrire
Se connecter
Pressure adjustment 105 - 210 bar
Valve type Vale Marteau
Maximum pressure 350 bar
Compensated valve Yes
Material Steel
Ways 5 Way
Flow Max 150 l/mn
Weight 5.2 kg
Assembly In line
Thread Gaz - 1/2"
Family Flow Regulator
Range A-VRF

Hammer valve For 2 Pumps
Port size : 1/2"
Maxi flow inlet: 100 +100 l/mn
Maxi regulated flow priority : 150 l/mn
Standard setting 210 bar

Hydraulic Flow Control Valve 3-Way – Priority A / Bypass B1-B2 – 350 bar

The 0M.43.12.80 3-way hydraulic flow control valve provides an efficient and compact way to manage flow priority in complex hydraulic systems.

It features two inlets (P1, P2) and three outlets (A, B1, B2):

  • Port A is the priority, pressure-compensated outlet equipped with a built-in relief valve and solenoid control.

  • Ports B1 and B2 act as bypass lines, carrying the excess flow to other machine functions.

This configuration allows simultaneous and independent operation of:

  • the hydraulic actuator supplied by the priority line (A), and

  • the machine’s main functions (traction, slewing, lifting, etc.) powered by the bypass ports (B1, B2).

Technical specifications:

  • Max operating pressure: 350 bar (5000 psi)

  • Priority line pressure limited by built-in relief valve

  • Max back pressure at T: 1.5 bar (20 psi)

  • Drain from T (de-energized): up to 1.5 L/min (0.4 gpm)

  • Fluid temperature: –20 °C to +80 °C (–4 to 176 °F)

  • Viscosity range: 20 – 380 mm²/s (cSt)

  • Recommended fluid cleanliness: ISO 4406 Class 19/17/14

  • Manifold material: Zinc-plated steel

Key benefits:

  • Stable priority flow under varying load conditions

  • Enables tool operation without modifying the main control valve

  • Ideal for hydraulic tools (hammers, cutters, motors, etc.)

  • Allows simultaneous independent functions in multi-circuit systems

Perfect for construction machinery, agricultural equipment, and custom hydraulic power units.

BOSCH REXROTH OIL CONTROL performs a test on each component
