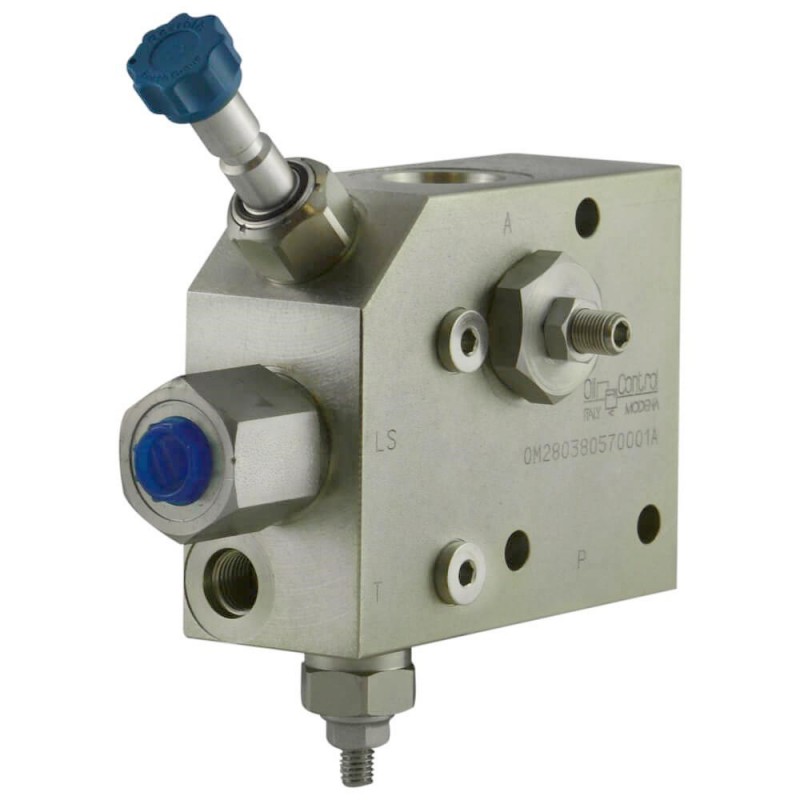

A VRFC 2C VEI VSAN LS VU 342 B01 (tarage VSAN 210 bar)

Hammer valve
Port size :   1 1/16 UNF
Maxi Flow : 140 l/mn
Pilotage LS
Tarage 210 bar

Hydraulic Flow Control Valve – Pressure Compensated 350 bar

This 3-way pressure-compensated flow control valve ensures a stable and precise priority flow through port “A”, even under variable load conditions.

When the solenoid coil is energized, flow is delivered and adjustable via the built-in restrictor (turn anticlockwise to increase flow). The Load Sensing (LS) signal increases pump output to match circuit demand, improving energy efficiency and system responsiveness.

Technical features:

• Flow range: 1.5 – 140 L/min

• Max working pressure: 350 bar

• Drain from port “T” (de-energized): up to 1.5 L/min

• Max back-pressure in “T”: 1.5 bar

• Steel body – 4.6 kg

• Minimum pressure on port “A”: 8–9 bar for correct compensator function

Recommended accessories:

• Check valve with appropriate cracking pressure

• Relief valve preset according to application requirements

Perfect for dual pump systems, load-sensing circuits, and all applications requiring priority flow control such as steering, lift, and motion functions.

Typical applications:

Construction machinery, hydraulic presses, mobile equipment, custom hydraulic power units.

Former references :

• 0M280380570001A
