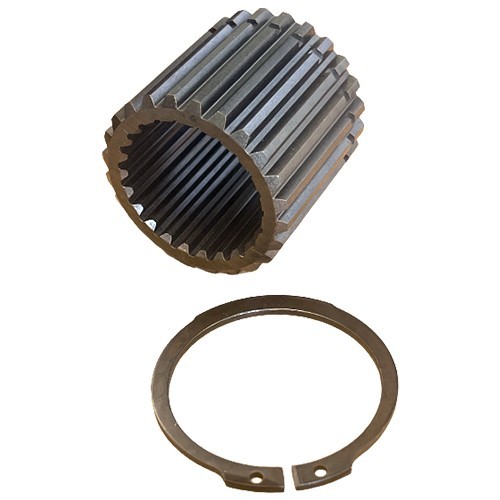

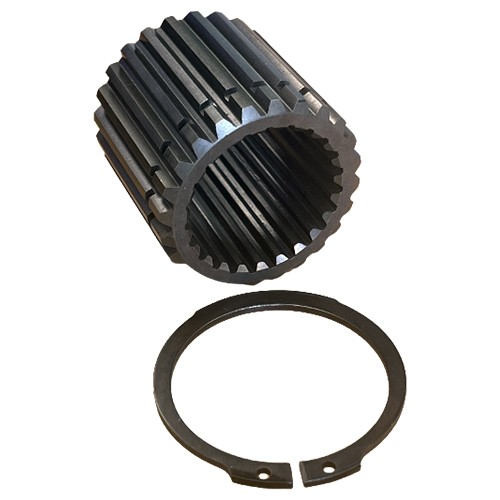

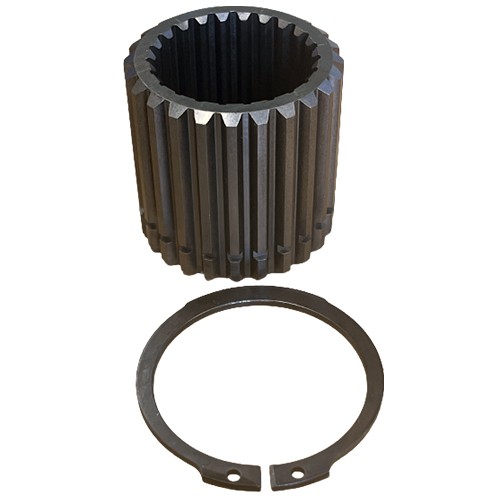

23 Internal Spline Coupling 16/32" DP | 24 External Spline Coupler
Pour voir nos tarifs et commander, vous devez créer un compte ou vous connecter.
| Internal teeth | 23 |
|---|---|
| Material | Steel |
| Length | 48 mm |
| External teeth | 24 |
| Internal spline standard | 16/32" DP |
| External spline standard | B 50x45 - DIN 5482 |
23 Spline coupler 16/32" DP | 24 External Spline Coupler
This Spline shaft Coupling proposed by the company OCGF, has an B 50x45 - DIN 5482 standard of his External spline. The number of its external teeth is 24. Regarding the dimensions of its internal spline, it corresponds to 16/32" DP. The number of its internal teeth is 23 spline. This Spline shaft Coupling is made of Steel. Finally, the length of this spline coupler is 48 mm
Splined shaft ext/int
Splined coupling external.pdf
