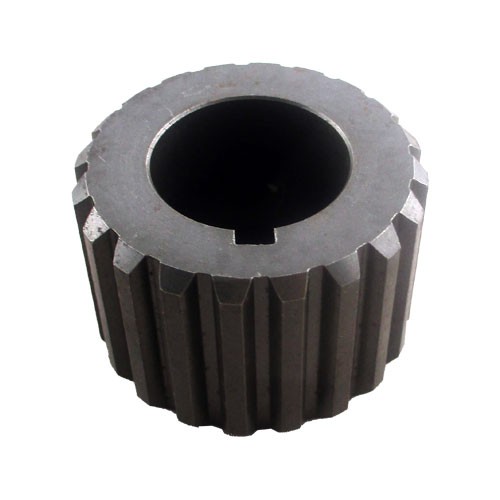

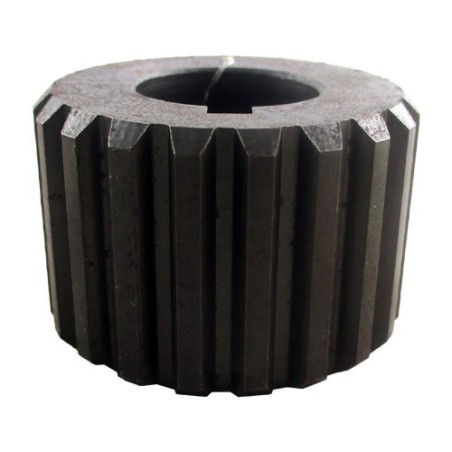

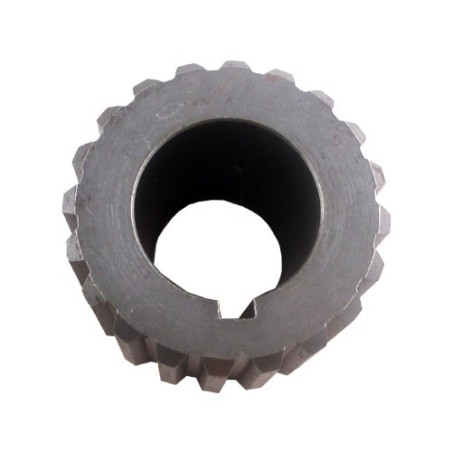

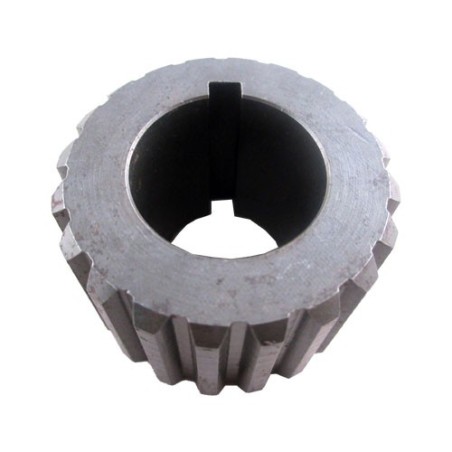

20 Spline Coupling A40x36 DIN 5482- Gr3 1/8e
Pour voir nos tarifs et commander, vous devez créer un compte ou vous connecter.
| Internal teeth | 20 |
|---|---|
| Outside diameter | 26 |
| Material | Steel |
| Length | 39.5 mm |
| External teeth | 0FG |
| Internal spline standard | A 40x36 - DIN 5482 |
| External spline standard | Smooth |
20 Spline coupler A40x36 DIN 5482 - Pump Gr 3
This Spline shaft Coupling proposed by the company OCGF, has nota External spline. It does not have an external spline. Regarding the dimensions of its internal spline, it corresponds to A 40x36 - DIN 5482. The number of its internal teeth is 20 spline. This Spline shaft Coupling is made of Steel. Finally, the length of this spline coupler is 39.5 mm
Manchon cannelé TRSM20DIN5482GR3
Manchon cannelé TRSM20DIN5482GR3.pdf
