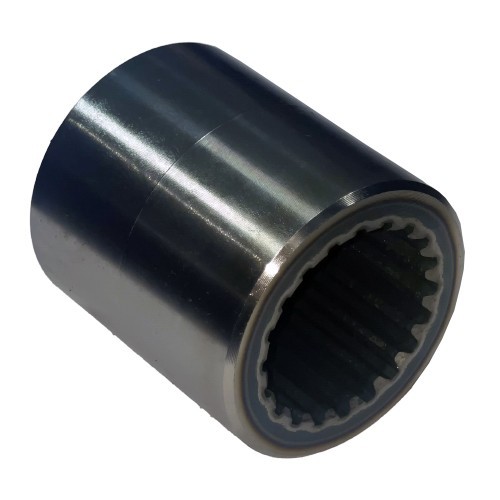

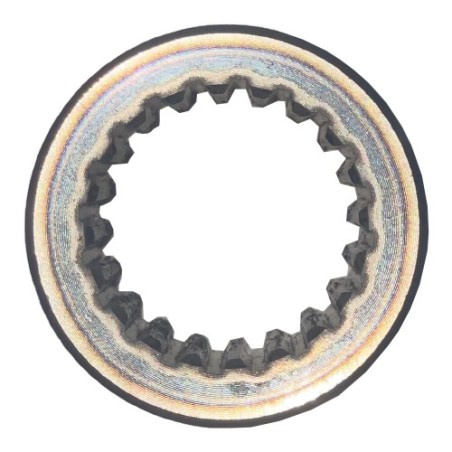

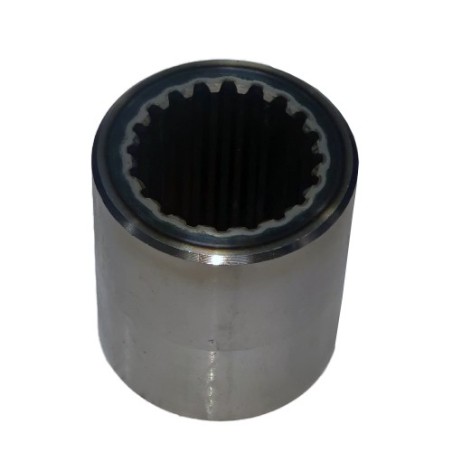

20 Spline Coupling A40x36 DIN 5482
Pour voir nos tarifs et commander, vous devez créer un compte ou vous connecter.
| Internal teeth | 20 |
|---|---|
| Outside diameter | 55 mm |
| Material | Steel |
| Length | 60 mm |
| External teeth | 0FG |
| Internal spline standard | A 40x36 - DIN 5482 |
| External spline standard | Smooth |
20 Spline coupler A40x36 DIN 5482
This Spline shaft Coupling proposed by the company OCGF, has nota External spline. It does not have an external spline. Regarding the dimensions of its internal spline, it corresponds to A 40x36 - DIN 5482. The number of its internal teeth is 20 spline. This Spline shaft Coupling is made of Steel. Finally, the length of this spline coupler is 60 mm
