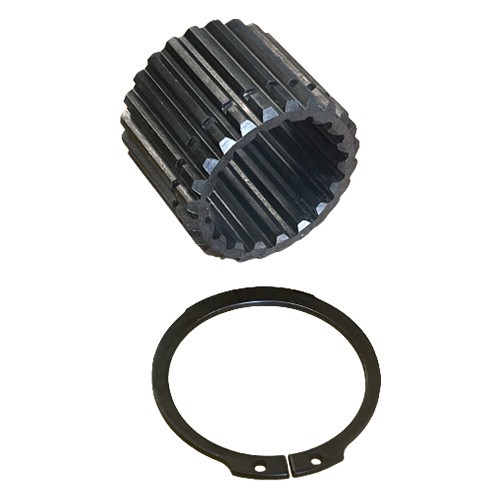

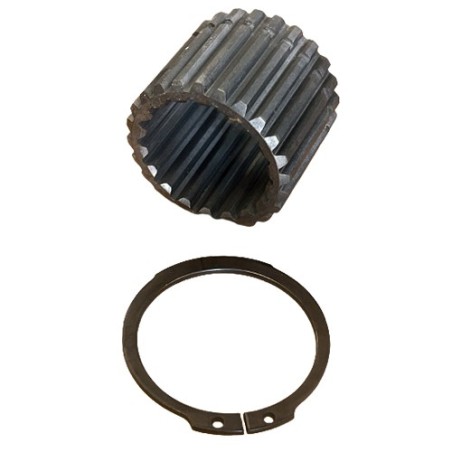

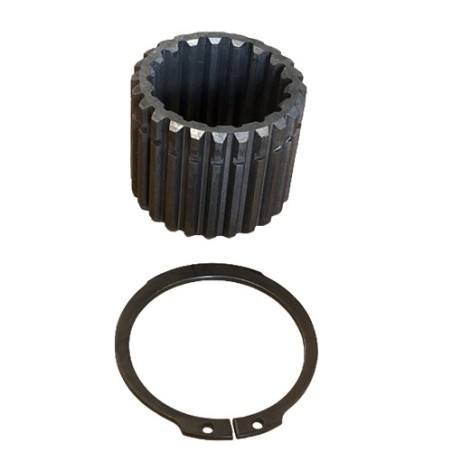

18 Internal Spline Coupling W40 DIN 5480 | 24 External Spline Coupler
Pour voir nos tarifs et commander, vous devez créer un compte ou vous connecter.
| Internal teeth | 18 |
|---|---|
| Material | Steel |
| Length | 40 mm |
| External teeth | 24 |
| Internal spline standard | W40x2x18x9H - DIN 5480 |
| External spline standard | B 50x45 - DIN 5482 |
18 Spline coupler W40 DIN 5480 | 24 External Spline Coupler
This Spline shaft Coupling proposed by the company OCGF, has an B 50x45 - DIN 5482 standard of his External spline. The number of its external teeth is 24. Regarding the dimensions of its internal spline, it corresponds to W40x2x18x9H - DIN 5480. The number of its internal teeth is 18 spline. This Spline shaft Coupling is made of Steel. Finally, the length of this spline coupler is 40 mm
Splined shaft ext/int
Splined coupling external.pdf
