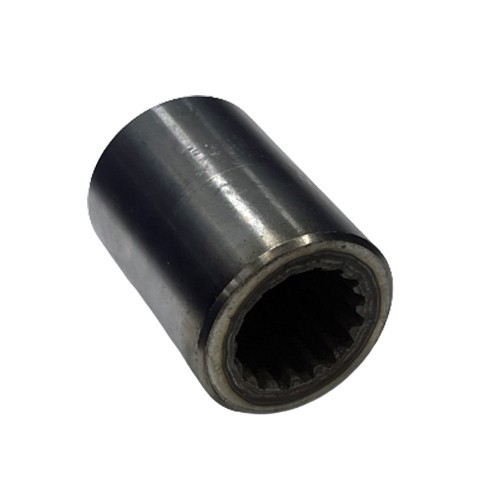

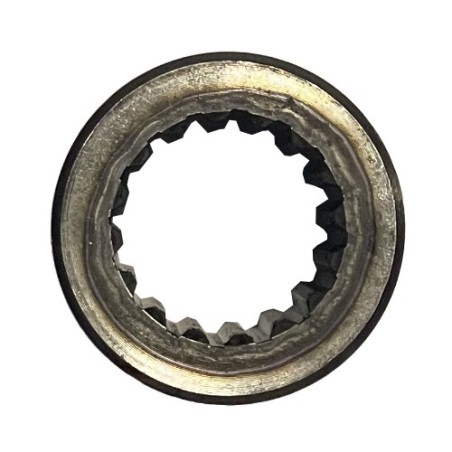

16 Spline Coupling W35x2x16x9H DIN 5480
Pour voir nos tarifs et commander, vous devez créer un compte ou vous connecter.
| Internal teeth | 16 |
|---|---|
| Outside diameter | 55 mm |
| Material | Steel |
| Length | 60 mm |
| External teeth | 0FG |
| Internal spline standard | W35x2x16x9H - DIN 5480 |
| External spline standard | Smooth |
16 Spline coupler W35x2x16x9H DIN 5480
This Spline shaft Coupling proposed by the company OCGF, has nota External spline. It does not have an external spline. Regarding the dimensions of its internal spline, it corresponds to W35x2x16x9H - DIN 5480. The number of its internal teeth is 16 spline. This Spline shaft Coupling is made of Steel. Finally, the length of this spline coupler is 60 mm
Manchon cannelé Douille cannellé
Manchon cannelé Douille cannellée Splined coupling.pdf
