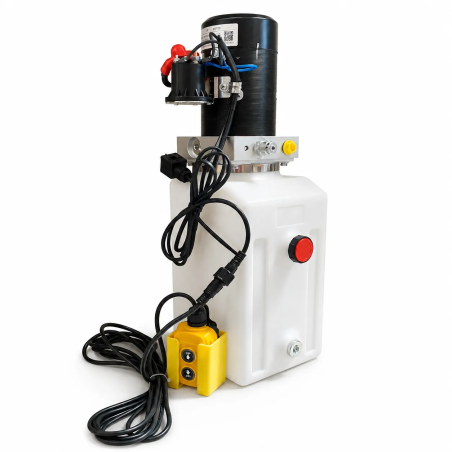

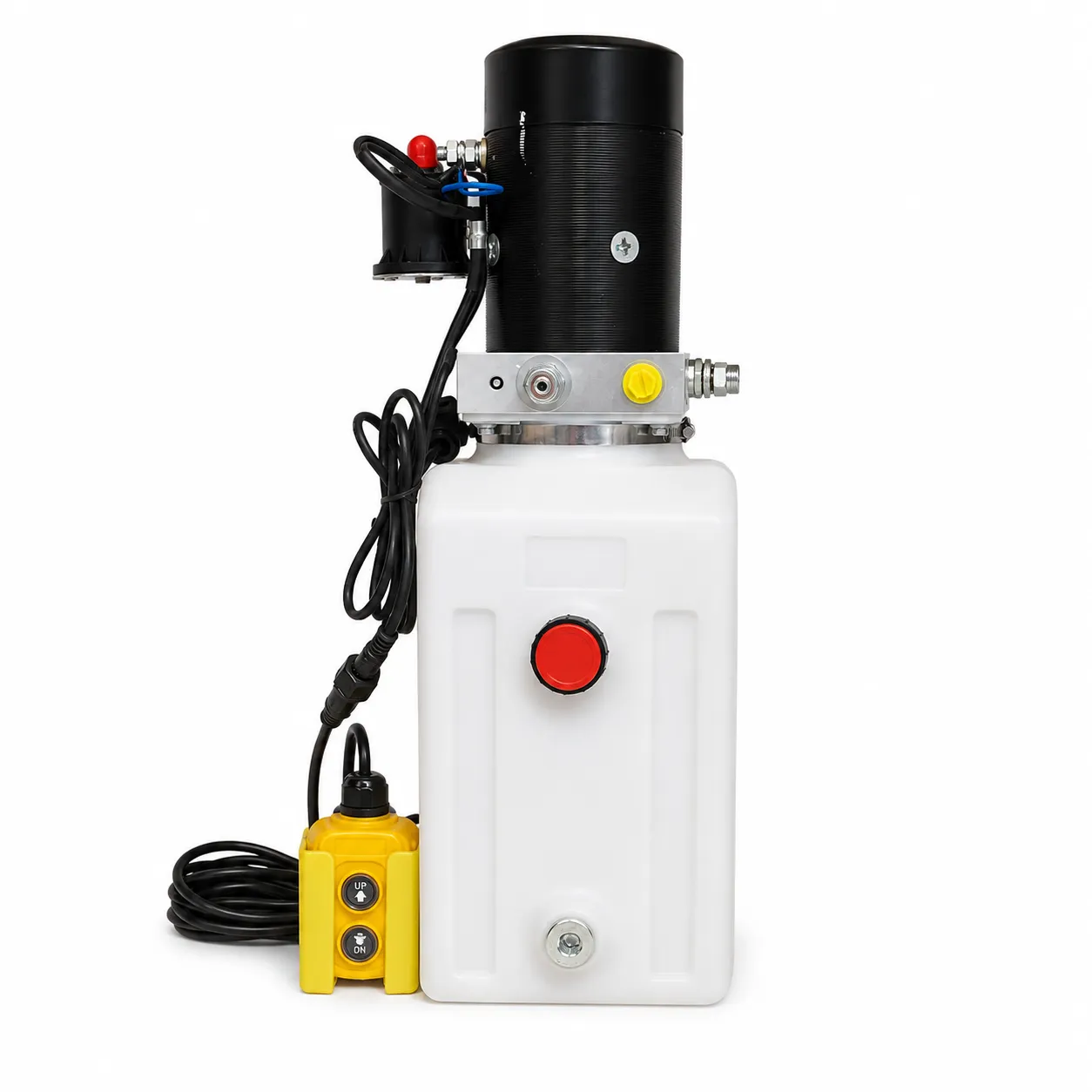

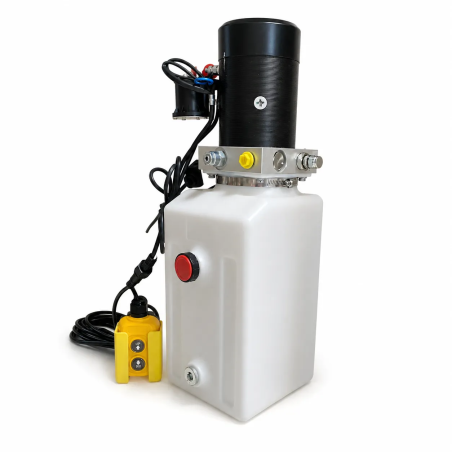

12 V Hydraulic Tipper Pump 1.6 kW 180 bar 8 L Free Flow with Push-Button Control and Support Bracket

12 V Hydraulic Tipper Pump 1.6 kW 180 bar 8 L Free Flow with Push-Button Control and Support Bracket

This 12 V hydraulic tipper pump is designed for tipper bodies, tipping trailers, small hydraulic lifting systems and mobile applications requiring a compact, reliable and easy-to-install hydraulic power unit. With its 12 V motor, 1.6 kW power output, 180 bar maximum pressure and 8 L tank, it provides a complete solution for vehicle-mounted hydraulic systems. The free flow configuration allows oil to return freely through the hydraulic circuit, making it suitable for tipping applications where lowering is managed by a simple return flow or gravity-based movement, depending on the installation. This makes it a practical choice for hydraulic tipper systems requiring efficient lifting, smooth lowering and simple operation. This hydraulic power unit is supplied with a push-button control box and support bracket. The wired control box allows the operator to control the tipping function easily, while the support bracket helps keep the control unit properly positioned and protected during use. This is especially useful for professional users who need a clean, reliable and field-ready installation. At OCGF, we supply hydraulic components selected for real workshop and field requirements: maintenance, repair, replacement and new hydraulic installations. This 12 V hydraulic tipper pump is suitable for workshops, bodybuilders, agricultural users, transport operators, trailer manufacturers and anyone looking to replace or install a compact hydraulic power unit.

Why choose this hydraulic tipper pump?

This hydraulic tipper pump combines a compact design, 12 V power supply and 180 bar pressure rating, making it suitable for mobile equipment powered by battery. The 8 L tank offers a practical oil capacity for many small and medium hydraulic tipping applications. It is a good option if you need a complete hydraulic tipper power unit with free flow function, wired push-button control and support bracket. It helps reduce installation time and avoids unnecessary adaptation work on the hydraulic circuit.

Typical applications

This hydraulic power unit can be used for several lifting and tipping applications, including: hydraulic tipper bodies; tipping trailers; tipping platforms; small agricultural equipment; utility vehicle hydraulic systems; replacement of an existing 12 V tipper pump; compact mobile hydraulic systems.

Main specifications

Product type: hydraulic tipper pump / hydraulic power unit Voltage: 12 V Motor power: 1.6 kW Maximum pressure: 180 bar Tank capacity: 8 L Function: free flow Control: push-button control box Included accessory: support bracket Use: tipper, trailer, platform or mobile hydraulic application

OCGF advice before ordering

Before ordering, check compatibility with your hydraulic system: voltage, required pressure, oil volume, cylinder type, operating direction and hydraulic circuit configuration. If you are unsure, contact OCGF with your installation details or the reference of your previous hydraulic power unit. We can help you choose the right hydraulic tipper pump.

FAQ – 12 V Hydraulic Tipper Pump 180 bar

Is this hydraulic pump suitable for a tipper body?

Yes. This hydraulic power unit is designed for tipper bodies, tipping trailers and similar mobile hydraulic lifting applications using a 12 V power supply.

What does free flow mean on a hydraulic tipper pump?

Free flow means the oil can return freely through the hydraulic circuit. It is commonly used on tipping systems where lowering is simplified, often gravity-assisted depending on the installation.

Is the push-button control included?

Yes. This version includes a wired push-button control box for operating the hydraulic power unit.

Is the support bracket included?

Yes. The product includes a support bracket, allowing the control box to be fixed or stored more cleanly on the equipment.

Can this unit work on 24 V systems?

No. This model is specified for 12 V systems. For a 24 V installation, you need a hydraulic power unit designed for 24 V operation.

Can OCGF help me check compatibility?

Yes. If you are unsure about pressure, tank capacity, cylinder compatibility or hydraulic connection, contact OCGF before ordering. We can help you avoid selecting the wrong hydraulic power unit.
