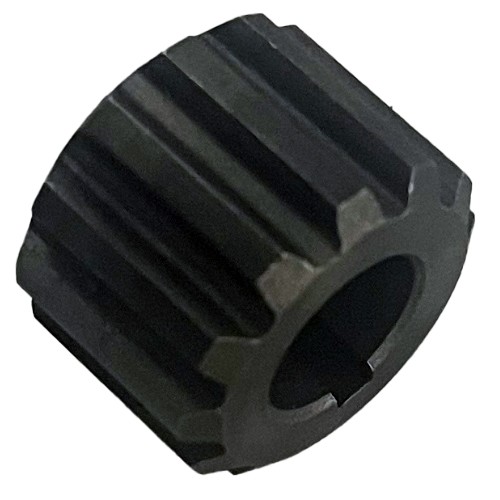

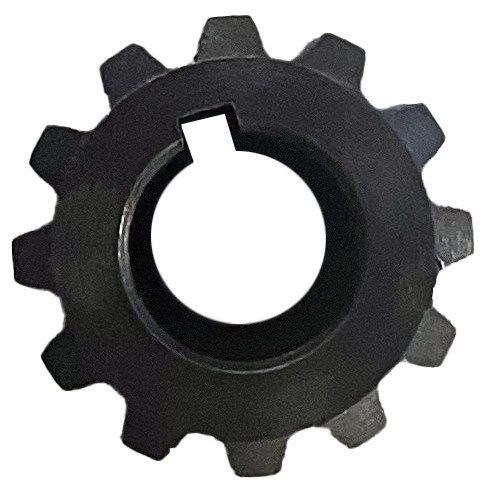

Keyed sleeve 12 teeth - Keyway 2.4 for CP1 / M1
Pour voir nos tarifs et commander, vous devez créer un compte ou vous connecter.

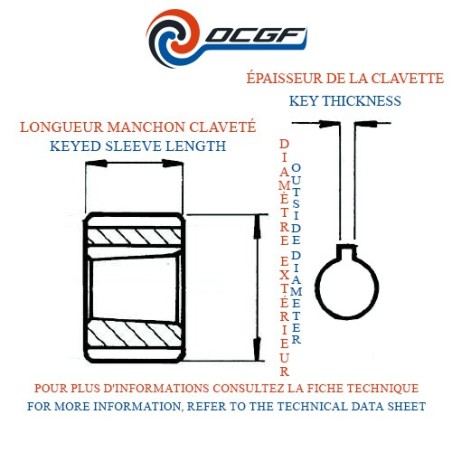

| Type of hydraulic pump | 1 |
|---|---|
| Outside diameter | 14.5 mm |
| Hydraulic pump unit | Group 1 |
| Length | 19.50 mm |
| External teeth | 12 |
| External spline standard | B 20x17 - DIN 5482 |
| Key thickness | 2.40 mm |
Keyed sleeve coupling 12 teeth keyway 2.4mm for bearing 1 and group hydraulic pump 1
The 12 teeth shaft coupler with keyway 2.4 mm for bearing 1 and group hydraulic pump 1 is ideal for ensuring secure and efficient hydraulic system connections. Built to last, it minimizes wear and tear while optimizing torque transfer. Its precision design is perfect for light and heavy-duty applications alike. OCGF offers global delivery and unparalleled expertise in hydraulics. If you have any questions, our team of experts is here to provide guidance and solutions. We are proudly located in France.
Keyed sleeves
Keyed sleeves are mechanical components used in various applications to ensure a strong connection between two parts, such as shafts and hubs. Made from robust materials like steel, these sleeves feature grooves or keys that engage with corresponding slots on the shaft and hub, ensuring precise alignment and efficient torque transmission. These devices are commonly employed in industrial machinery and equipment to ensure stability and optimal performance of mechanical connections.
