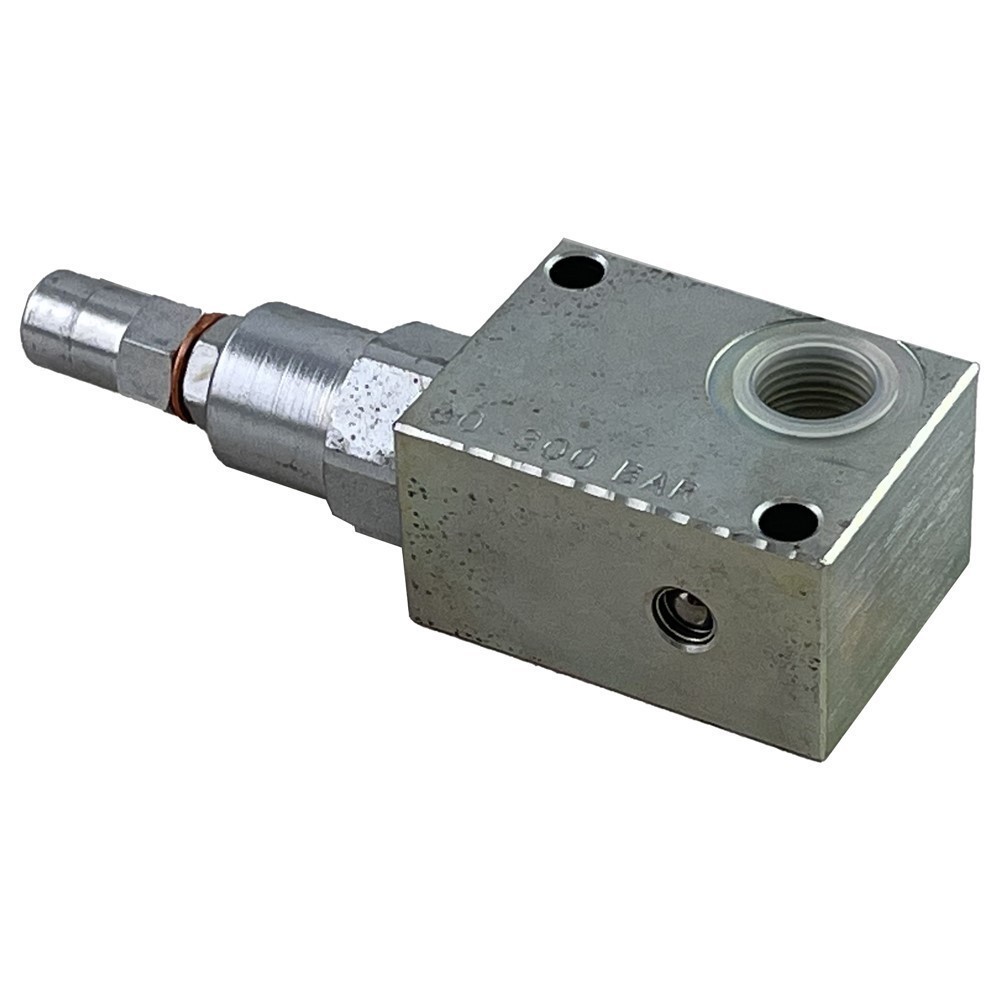

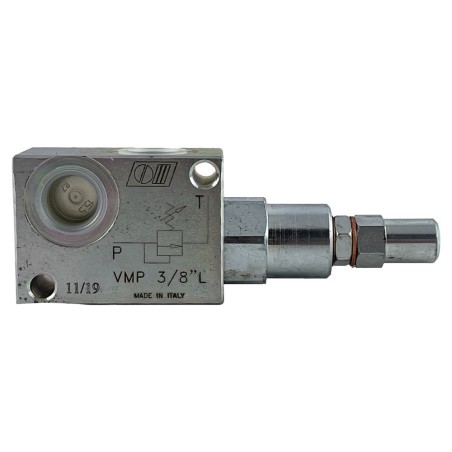

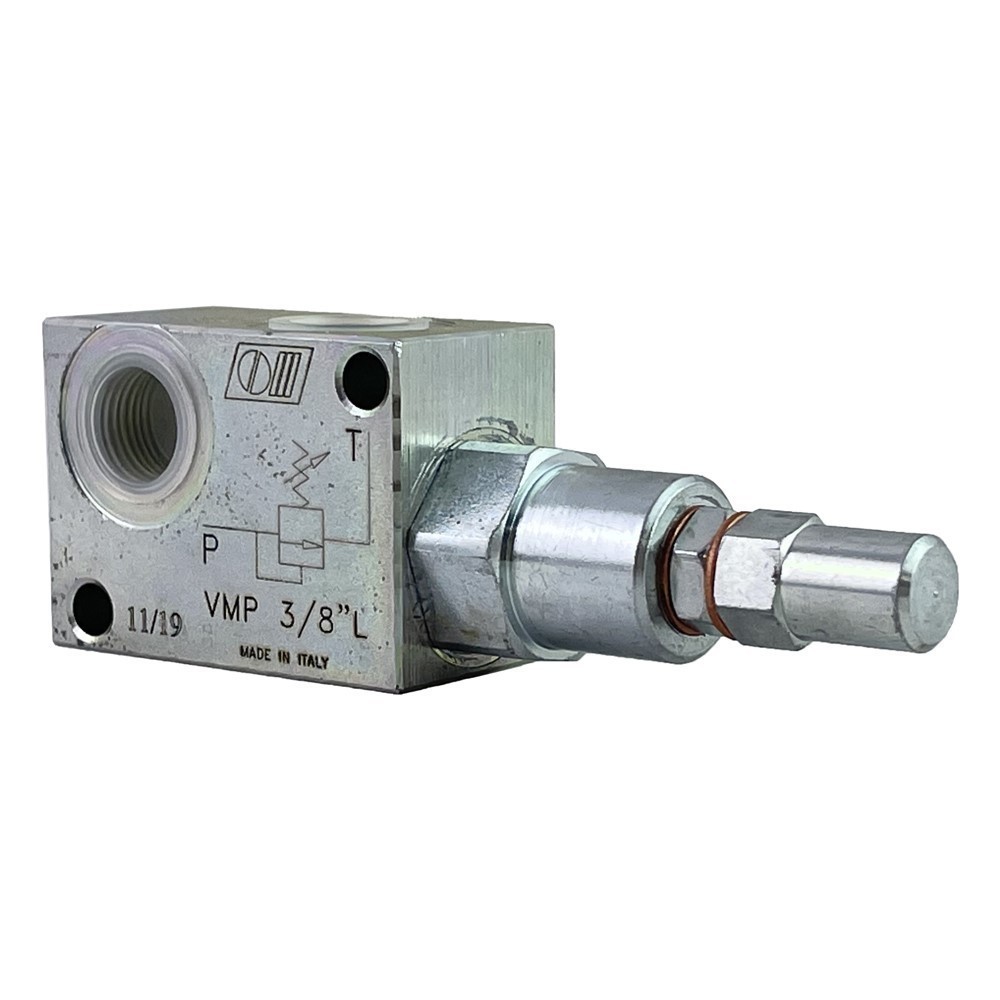

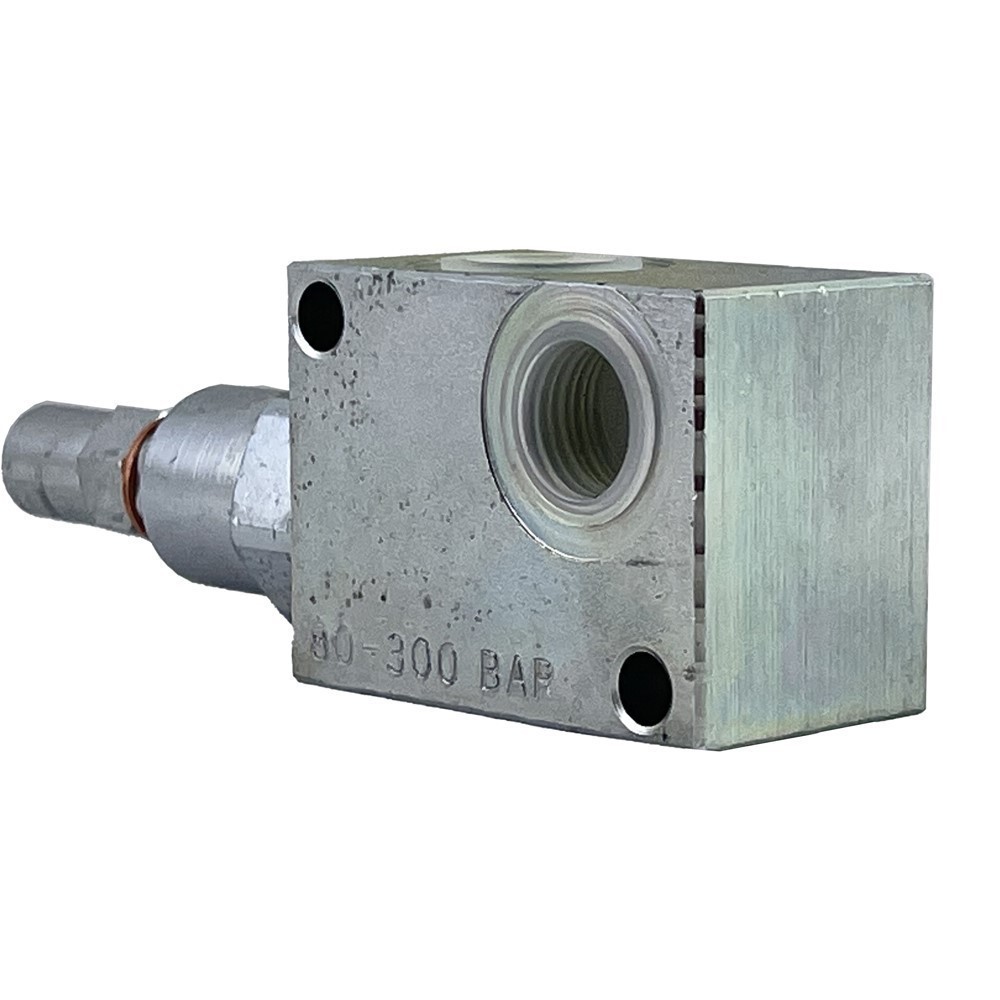

Hydraulic pressure relief valve 40l/mn VMP 38 L (80-300 bar)
Pour voir nos tarifs et commander, vous devez créer un compte ou vous connecter.
| Pressure adjustment | 80 - 300 bar |
|---|---|
| Flow | 40 l/mn |
| Material | Steel |
| Cavity | Bloc |
| Assembly | In line |
| Thread | Gaz - 3/8" |
| Adjustment type | Screw adjustment |
| Operation type | Direct |
Direct acting relief valve
This hydraulic pressure relief valve offered by OCGF have the function of limiting the pressure and providing protection to the pump in a hydraulic circuit. The operation type of this pressure relief valve is Direct.This pressure relief valve with reference OCGFV0690/300 has a pressure of 80 - 300 bar. It is adjusted By screws. The assembly is In line. It has a maximum flow capacity of 40 l/mn. For technical advice, do not hesitate to contact us using the contact details at the bottom of this page.
