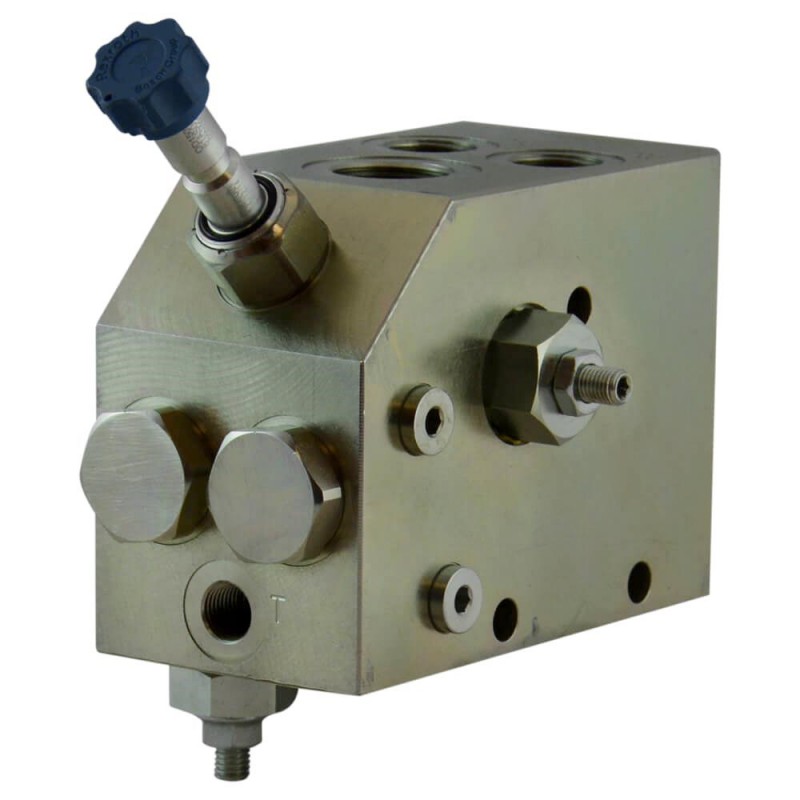

A VRFC 3C VEI VS 2E 12 35 B

Hammer valve For 2 Pumps
Port size : 1/2"
Maxi flow inlet: 100 +100 l/mn
Maxi regulated flow priority : 150 l/mn
Standard setting 350 bar

Hydraulic Flow Control Valve 3-Way – Priority A, Bypass B1/B2 – 350 bar

The 0M.43.12.80 3-way hydraulic flow control valve provides efficient and accurate flow distribution for hydraulic systems requiring simultaneous, independent operations.

It features two separate inlets (P1 and P2) and three outlets (A, B1, B2):

• Port A is the priority, pressure-compensated outlet, equipped with a built-in relief valve and solenoid cartridge for on-demand activation.

• Ports B1 and B2 act as bypass lines, carrying excess flow to other hydraulic functions.

This valve design allows powering multiple hydraulic circuits simultaneously, such as:

• the priority actuator through A,

• and the machine’s normal functions (traction, slewing, lifting, etc.) through B1/B2, without pressure interference.

It provides a simple and effective way to power hydraulic tools (like hammers or cutters) from an existing hydraulic system — no need to modify the main directional valve.

---

Technical data:

• Max operating pressure: 350 bar (5000 psi)

• Max priority line pressure: limited by built-in relief valve

• Back pressure at T port: 1.5 bar max (20 psi)

• Drain flow (solenoid off): up to 1.5 L/min (0.4 gpm)

• Fluid temperature: –20 °C to +80 °C (–4 to 176 °F)

• Viscosity range: 20 – 380 mm²/s (cSt)

• Fluid: Mineral oil (HL, HLP) per DIN 51524

• Manifold material: Zinc-plated steel

• Recommended cleanliness: ISO 4406 Class 19/17/14

---

Key benefits:

• Stable, pressure-compensated priority flow

• Solenoid control for flexible circuit management

• Simultaneous independent operations (priority + bypass)

• Plug-and-play integration into existing hydraulic systems

• Robust zinc-plated steel body for industrial and mobile applications

---

Typical applications:

Construction machinery – agricultural equipment – hydraulic power units – dual-pump systems – load-sensing circuits

BOSCH REXROTH OIL CONTROL performs a test on each component

Old references :
0M4312800335000
