| Shape | Cylindrical |
| Remote Switch included | No |
| Reservoir - Capacity | 09 L |
| Displacement of Pump | 1.6 cc |
| Voltage | 12 Volts |
| Movement type | Single acting |
Maximize the performance of your hydraulic systems with Bosch Rexroth's power and reliability.
The compact 1.6 kW hydraulic mini power unit is a high-performance solution designed for mobile and industrial applications where space-saving and efficient power delivery are essential.
Our 12V hydraulic pump comes with a 9-liter plastic reservoir and a 150-amp relay, making it ideal for 3.5T tipper trucks, multi-skip systems, or utility trailers.
12V hydraulic pumps offer several key advantages for a wide range of applications. Their 12-volt power supply makes them perfect for use in utility vehicles, agricultural machinery, or lifting systems where access to traditional electrical infrastructure is limited.
This voltage flexibility allows for easy and fast installation without major electrical modifications.
Moreover, 12V components are widely available, making this a cost-effective and accessible option for users.
In terms of performance, 12V hydraulic pumps are known for their efficiency. They can generate high pressure while maintaining low energy consumption, optimizing performance without overloading the battery or alternator.
Their compact design allows for easy integration in tight spaces, a common challenge with bulkier hydraulic equipment. This makes them the go-to choice for systems requiring strong hydraulic output without excessive footprint.
These pumps often include advanced features such as overheat protection and integrated filters to prevent contaminants from entering the hydraulic circuit.
Such components extend pump life, reduce maintenance, and ensure long-term operational reliability.
In short, choosing a 12V hydraulic pump is a smart solution for anyone seeking performance, reliability, and efficiency.
✅ 12V hydraulic pump – 12V DC electric motor
✅ Power: 1.6 kW
✅ Displacement: 2.1 cm³/rev
✅ Oil reservoir: 9 liters (blown plastic tank)
✅ Filtration: 90 microns
✅ Weight: 15.5 kg
✅ Connections: 3/8" BSPP suction – 1/8" BSPP return
To better understand how a 12V hydraulic pump operates, let’s look at its core components:
Electric motor: Powered by a 12V source, it converts electrical energy into mechanical power, driving hydraulic flow. Its power level directly influences pressure and flow rate.
Pump housing: Typically made of aluminum or steel, it contains pistons or vanes that compress hydraulic fluid.
Seals and O-rings: Ensure leak-free operation and maintain system pressure.
Fittings and connectors: BSPP threaded ports or clamps ensure high-pressure tolerance and efficient fluid transfer.
Control valves and regulators: Often integrated to adjust flow and pressure for your specific application needs.
Understanding these elements helps with setup and performance optimization of your 12V hydraulic unit.

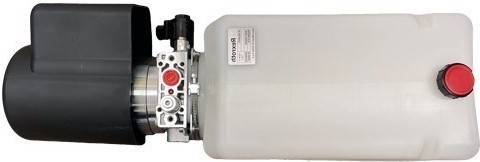

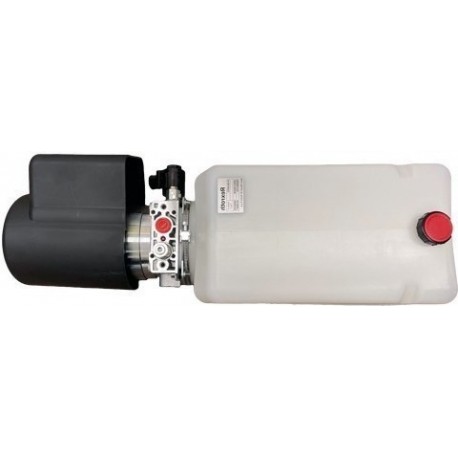

This ready-to-install 12V hydraulic mini power unit includes:
✅ Bosch Rexroth A9 K VMDU hydraulic pump
✅ C190-G 12V – 1600W motor with 150A relay
✅ 9L plastic oil reservoir with filler cap and breather
✅ Mushroom suction filter Ø62 mm
✅ 12V solenoid coil (36-K4)
✅ 3/8" BSPP suction pipe – 320 mm
✅ Mounting kit for motor support
✅ Standardized fixing holes
✅ Protective cover plate
This 12V hydraulic pump is perfectly suited for:
Tipper trucks and dump trailers
Agricultural trailers
Scissor lifts and platform elevators
Tailgate lifts
Mobile or autonomous hydraulic systems
Can I power this 12V hydraulic pump directly from a vehicle?
Yes. It is designed for direct 12V battery connection – ideal for onboard applications.
What type of oil should I use?
We recommend ISO VG 32 or 46 hydraulic oil, depending on your ambient temperature.
Is the unit delivered ready to use?
Yes. This power unit is pre-assembled and factory-tested.
Can I adapt it to a specific hydraulic cylinder?
Absolutely. Our technical team can help size the system based on your application.
You can purchase your high-quality 12V hydraulic pump directly from our website.
At OCGF, our experts are here to help you select the perfect pump for your needs.
OCGF is a manufacturer of custom hydraulic power units.
We specialize in producing hydraulic packs for mobile machinery, especially tipper systems.
All of our units are assembled and tested in France and Europe, ensuring quality, durability, and full compliance with professional standards.
✅ Fast delivery across France and worldwide
✅ Large stock ready to ship
✅ Secure payment
✅ Custom-built solutions available (tank size, voltage, fittings)
✅ Expert support in mobile and industrial hydraulics
